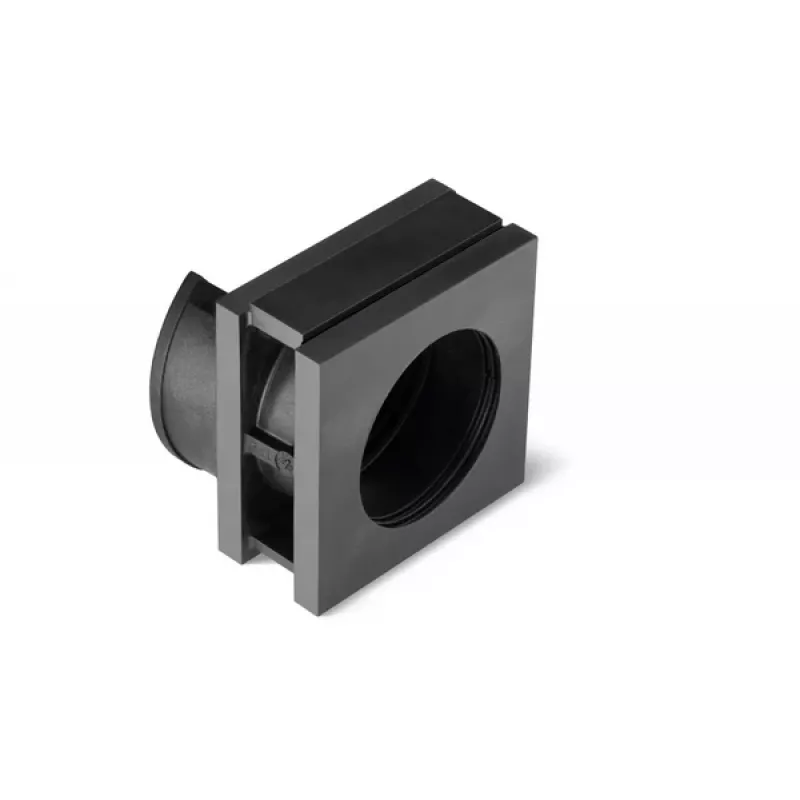

HellermannTyton VP-L 30-31 Μεμονωμένο περίβλημα, TPE χωρίς αλογόνα, μαύρο, 1 τεμ. (440-00038)

Single grommet for cable protection and strain relief in panel feed-throughs, featuring a push-in/snap-in mounting for quick installation. Made from halogen-free thermoplastic elastomer (TPE) in black, it accommodates cables with a diameter of 3.0–3.1 mm and fits panel thicknesses from 1.0 to 3.0 mm.

Advantages

Halogen-free TPE material reduces toxic smoke in case of fire. The snap-in design allows tool-free assembly, while the grommet protects cables from sharp panel edges and provides strain relief.

Suitable for

• Routing cables through panels in enclosures, machinery, and electrical cabinets
• Applications requiring halogen-free components
• Panel thicknesses from 1.0 to 3.0 mm

Key specifications

• Material: Thermoplastic Elastomer (TPE)
• Colour: Black
• Cable diameter range: 3.0–3.1 mm
• Panel cutout diameter: 6.0 mm
• Overall outer diameter: 8.0 mm
• Overall height: 5.0 mm
• Operating temperature: -40 °C to +100 °C
• Flammability rating: UL94 HB
• Mounting type: Push-in / Snap-in
• Quantity per pack: 1 piece

Recommendations

For best results, ensure the panel cutout is accurate and the cable diameter is within the specified range. Use in environments where halogen-free materials are required.
