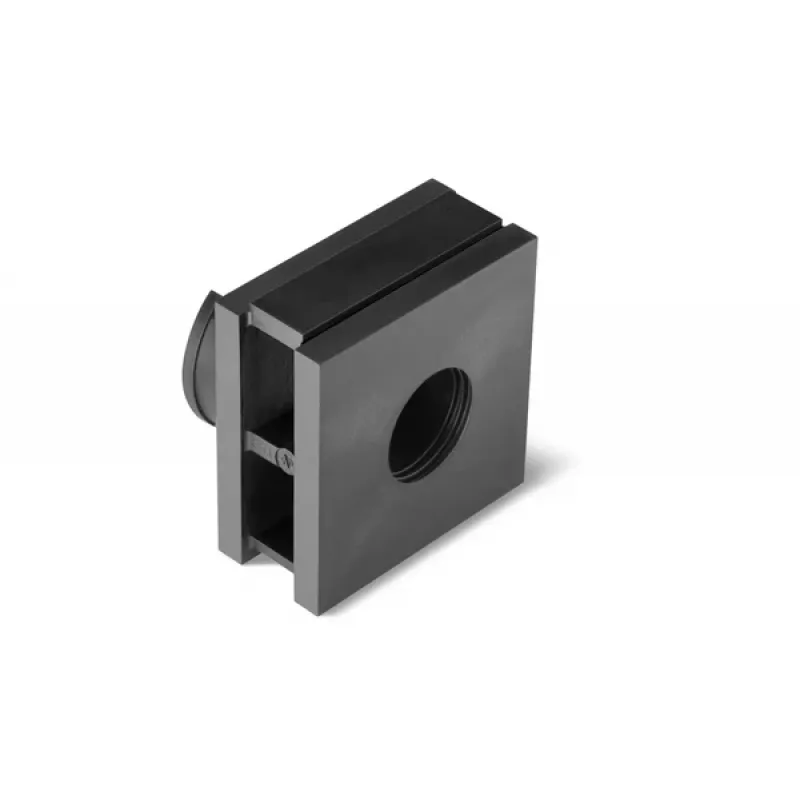

HellermannTyton VP-L 18-19 Μεμονωμένο παρέμβυσμα πλάκας, TPE χωρίς αλογόνα, μαύρο, 1 τεμ. 440-00026

Routing cables through sheet metal or plastic panels often leaves sharp edges that can cut insulation, cause vibration noise, and let dust or moisture into enclosures. The HellermannTyton VP-L 18-19 single panel grommet solves this by providing a soft, halogen-free TPE edge that protects cables and seals the opening.

Who is it for

Panel builders, electrical enclosure manufacturers, and maintenance technicians who need reliable cable entry protection in thin-walled panels. It suits applications where vibration damping and a clean, professional finish are required.

Main features

• Fits panel thickness from 1.8 mm to 1.9 mm
• Panel hole diameter: 22.0 mm
• Accepts cable diameter from 10.0 mm to 11.0 mm
• Made of halogen-free thermoplastic elastomer (TPE)
• Black colour blends with most enclosures
• Push-in mounting for quick installation
• Provides vibration damping, edge protection, and sealing
• Operating temperature range: -40 °C to +100 °C
• Flammability rating: UL94 HB
• Sold as single piece

Specifications

• Product type: Single panel grommet
• Series: VP-L
• Material: Thermoplastic elastomer (TPE)
• Colour: Black
• Halogen-free: Yes
• Panel thickness range: 1.8 - 1.9 mm
• Panel hole diameter: 22.0 mm
• Cable diameter range: 10.0 - 11.0 mm
• Mounting type: Push-in
• Operating temperature: -40 °C to +100 °C
• Flammability rating: UL94 HB
• Quantity per pack: 1 piece
• RoHS compliant: Yes
• REACH compliant: Yes

Tips

Ensure the panel hole is clean and deburred before installation. For best sealing, verify that the cable diameter falls within the specified range. The grommet can be reused if carefully removed.
