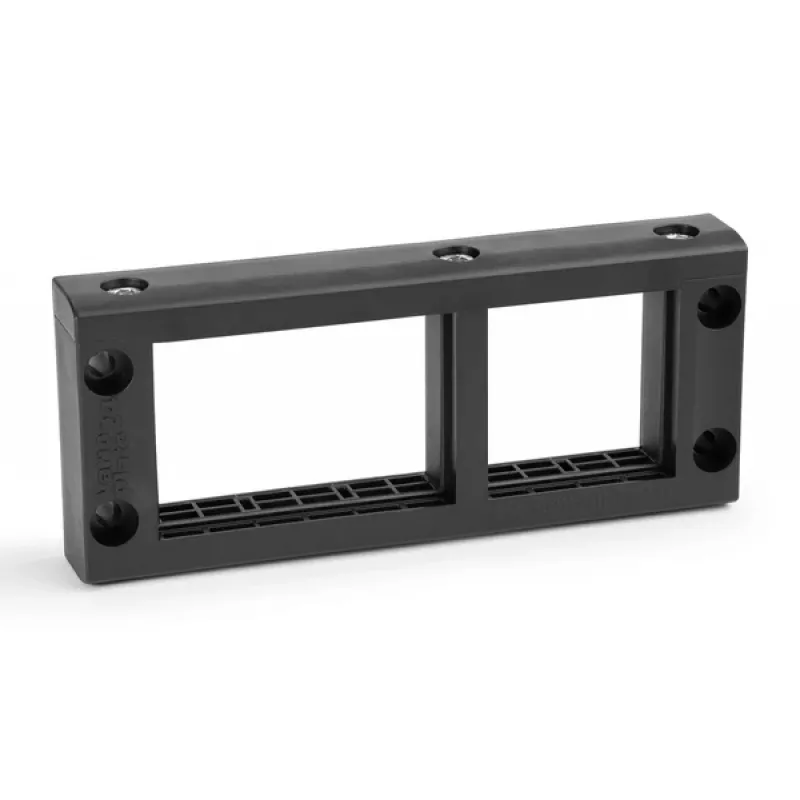

HellermannTyton VarioPlate-24 Πλαίσιο PL-BK εισόδου καλωδίων, χωρίς αλογόνα, μαύρο 440-00003

Cable entry frame for the HellermannTyton VarioPlate system, providing a halogen-free, flame-retardant solution for routing cables through control cabinets and electrical enclosures. The VarioPlate-24 Frame PL-BK accommodates multiple cable diameters with its modular insert system, maintaining a clean and organized installation.

Advantages

The frame is constructed from glass-fiber reinforced polyamide 6.6, offering high mechanical strength and resistance to oils, greases, fuels, and alkalis. Its halogen-free material and UL94 V0 flame retardancy enhance safety in fire-sensitive environments. The integrated gasket ensures a secure seal, contributing to the system's up to IP67 rating when used with appropriate inserts.

Suitable for

• Control cabinet cable entry
• Electrical enclosure cable management
• Machinery and panel building
• Applications requiring halogen-free components

Key specifications

• System: HellermannTyton VarioPlate
• Material: Polyamide 6.6 (PA66 GF)
• Colour: Black (RAL 9005)
• Halogen-free: Yes
• Flame retardancy: UL94 V0
• Cutout dimensions (W x H): 112 x 36 mm
• External dimensions (L x W x H): 114.5 x 36.5 x 10.5 mm
• Mounting type: Screw mounting
• Operating temperature range: -40 °C to +100 °C
• System IP rating (with inserts): Up to IP67
• Gasket included: Yes (integrated)
• UV resistance: Moderate
• Chemical resistance: Good against oils, greases, fuels, alkalis
• Standards compliance: RoHS, REACH
• Packaging unit: 1 piece

Recommendations

For optimal performance, pair with HellermannTyton VarioPlate inserts to achieve the desired IP rating and cable retention. Ensure the cutout dimensions match the specified 112 x 36 mm for a proper fit.
