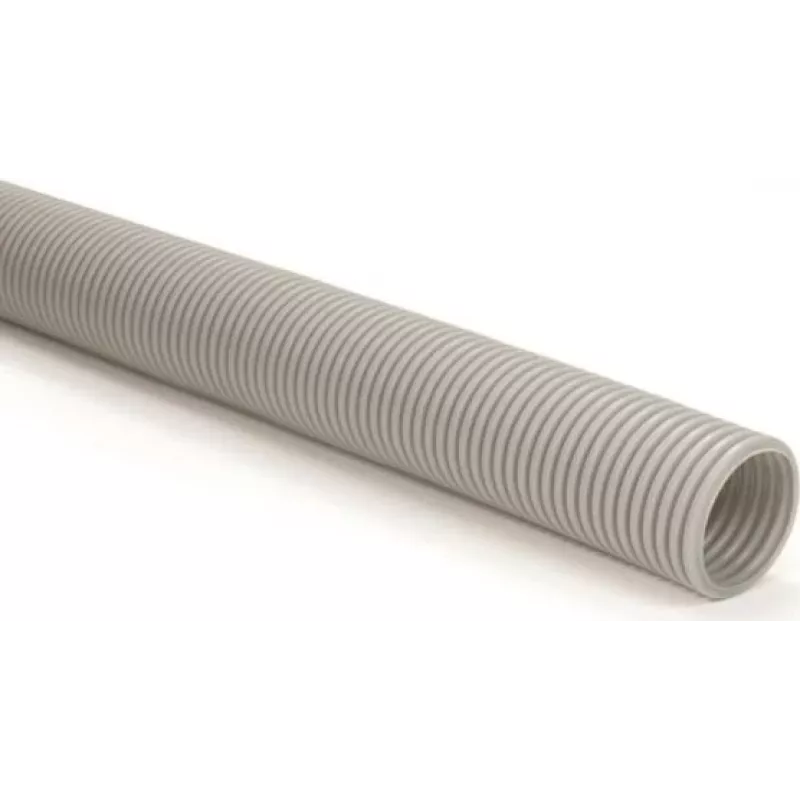

HellermannTyton IWS17-PE-GY 50 αυλακωτός σωλήνας, γκρι, 50m

The HellermannTyton IWS17-PE-GY 50 is a high-quality corrugated conduit designed for mechanical protection of cables and wires. Made from polyethylene (PE) with a grey colour (RAL 7031), this conduit offers excellent chemical resistance and is halogen-free. With a nominal size of NW17 and a length of 50 metres, it is ideal for a wide range of industrial and commercial applications.

Advantages

This corrugated conduit provides reliable protection against mechanical stress, with medium compression strength (Class 3, 750 N) and impact resistance (Class 3, 2 J). It is flame retardant (not flame propagating) and suitable for static use from -20 °C to +90 °C, and dynamic use from -5 °C to +60 °C. The IP66 rating (with appropriate fittings) ensures protection against dust and water ingress.

Suitable for

• Mechanical protection of cables and wires in industrial environments
• Indoor and protected outdoor installations
• Automation, machinery, and control systems
• Electrical installations requiring flexible yet robust conduit

Key specifications

• Product Type: Corrugated Conduit
• Series: IWS
• Material: Polyethylene (PE)
• Colour: Grey (RAL 7031)
• Nominal Size (NW): 17
• Outer Diameter: 21.2 mm
• Inner Diameter: 16.8 mm
• Length: 50 m
• Operating Temperature (Static): -20 °C to +90 °C
• Operating Temperature (Dynamic): -5 °C to +60 °C
• Flame Retardancy: Not flame propagating
• Halogen-Free: Yes
• UV Resistance: Limited (Indoor/Protected Outdoor Use)
• Compression Strength: Medium (Class 3, 750 N)
• Impact Resistance: Medium (Class 3, 2 J)
• IP Rating (with fittings): IP66
• Standards/Approvals: EN 61386
• Chemical Resistance: Good against acids, alkalis, oils

Recommendations

For best results, use with compatible HellermannTyton fittings to achieve IP66 protection. Suitable for indoor and protected outdoor applications; avoid prolonged direct sunlight exposure without additional UV protection.
