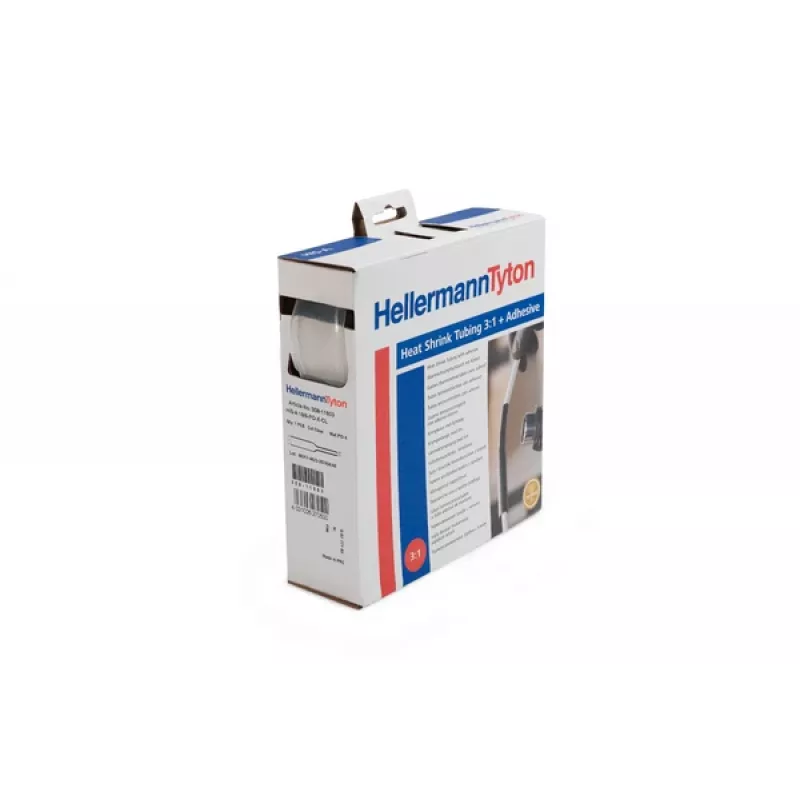

HellermannTyton HIS-A θερμοσυστελλόμενο μακαρόνι με κόλλα 24/8 mm 3 m διαφανές 308-12403

Adhesive-lined heat shrink tubing with a 3:1 shrink ratio, supplied in a dispenser box. The transparent polyolefin sleeve provides electrical insulation, sealing, and strain relief for cable splices and connector transitions.

Advantages

Adhesive lining melts during shrinking to create a moisture-resistant seal. The 3:1 ratio allows the tubing to conform to irregular shapes. Transparent material permits visual inspection of the covered connection.

Suitable for

• Electrical insulation and sealing of cable joints
• Strain relief for connectors and terminations
• Corrosion protection for metallic components
• Bundling and identification of wire harnesses

Key specifications

• Shrink ratio: 3:1
• Diameter before shrinking: 24 mm
• Diameter after shrinking: 8 mm
• Length: 3 m
• Colour: Transparent
• Adhesive lined: Yes
• Material: Cross-linked polyolefin
• Operating temperature range: -55°C to +110°C
• Minimum shrink temperature: +100°C
• Dielectric strength: >15 kV/mm
• Flame retardant: Self-extinguishing
• UV resistance: Good
• Chemical resistance: Good

Recommendations

For best results, use a heat gun with controlled temperature. Ensure the tubing is centred over the area to be sealed before applying heat.
