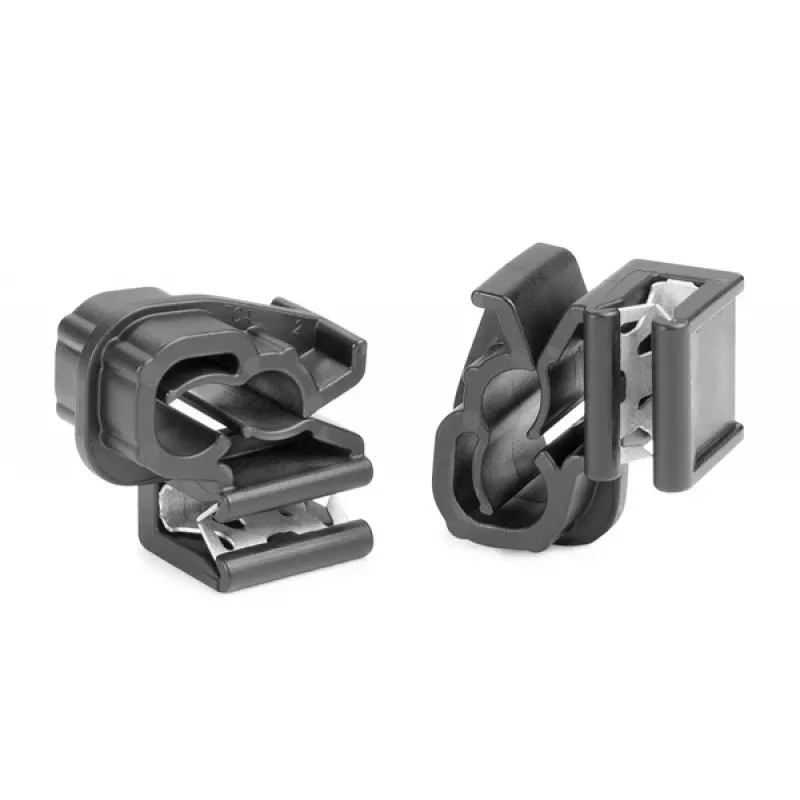

HellermannTyton EdgeClip EC1-3SV-DHC6-7 Βάση δεματικού καλωδίου, μαύρη, 100 τεμ. 151-04455

Edge clip for secure cable routing on panel edges without drilling. The push-on design mounts directly onto sheet metal or plastic edges with a thickness of 1.0 to 3.0 mm, providing a stable anchor point for cable ties up to 7.0 mm wide. Compatible with DHC6-7 style cable ties, it supports bundle diameters from 5.8 to 6.8 mm.

Advantages

No drilling required – quick installation on existing edges. Vibration-resistant hold keeps cable bundles in place. Halogen-free polyamide 6.6 construction withstands temperatures from -40 °C to +105 °C.

Suitable for

• Automotive wiring harness assembly
• Control cabinet and panel building
• General cable management on sheet metal edges

Key specifications

• Edge thickness: 1.0 – 3.0 mm
• Max. cable tie width: 7.0 mm
• Recommended bundle Ø: 5.8 – 6.8 mm
• Material: Polyamide 6.6 (PA66), black
• Operating temperature: -40 °C to +105 °C
• Flammability: UL94 V2
• Halogen-free, RoHS and REACH compliant
• Pack quantity: 100 pieces

Recommendations

Use with HellermannTyton cable ties of type DHC6-7 for a secure and durable cable routing solution.
