HAZET 4675-2 Εργαλείο απελευθέρωσης για επαφές επίπεδων βυσμάτων 1,5 mm

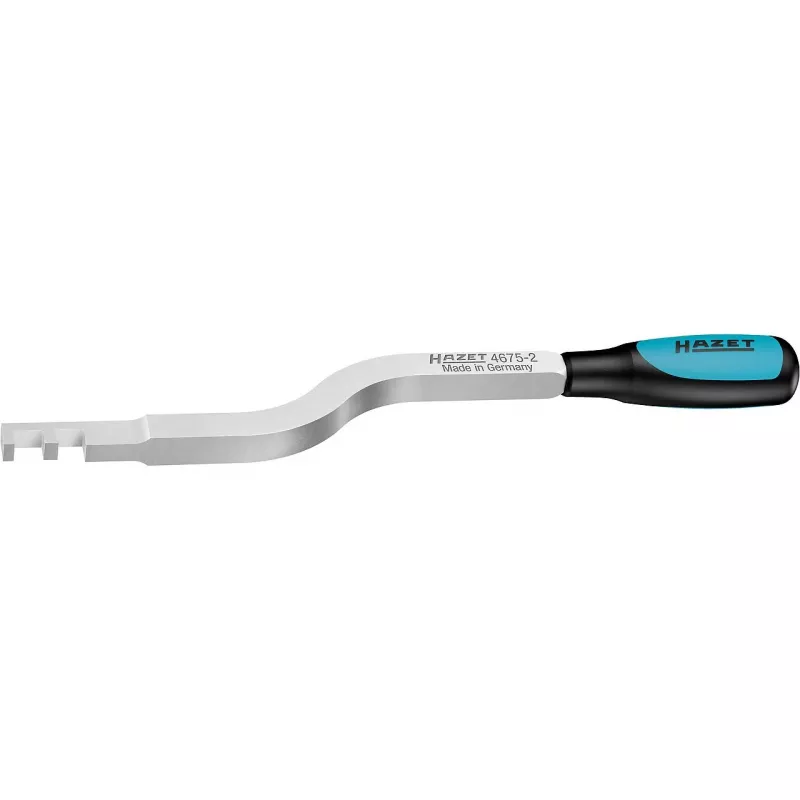

Automotive technicians working on Volkswagen, Audi, Skoda, or Seat vehicles often need to remove 1.5 mm flat plug contacts from connector housings without damaging the wiring or the connector. The HAZET 4675-2 release tool is built for exactly this task. Its precision-ground flat blade tip slides into the connector cavity, depresses the locking tab, and allows the contact to be pulled out cleanly.

Key specifications

• Tool type: Release tool for electrical connectors
• Contact size compatibility: 1.5 mm flat plug contacts
• Tip type: Flat blade, width 1.5 mm
• Shaft material: High-quality steel, slim and precision-ground
• Handle material: Ergonomic plastic
• Overall length: 100 mm
• Vehicle compatibility: Primarily VAG (Volkswagen, Audi, Skoda, Seat), general automotive

Why choose it

The slim shaft and exact 1.5 mm tip width make it possible to release contacts without bending or breaking the locking tabs. The ergonomic handle provides a secure grip during delicate work. This tool is part of the HAZET 4675 series and is made in Germany.

Ideal use cases

• Disassembling electrical connectors during wiring repairs
• Replacing damaged terminals in VAG vehicles
• Depinning connectors for harness modifications

Good to know

The tool is not insulated and should not be used on live circuits. It is designed for damage-free release of contacts.
