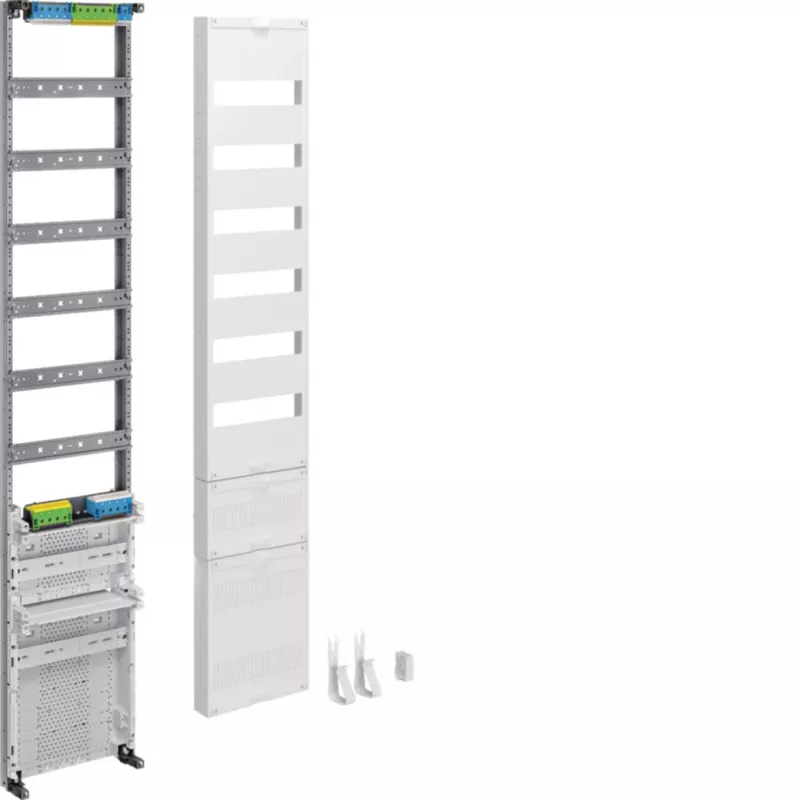

Hager ZU59VT6APZ2 Πεδίο Πίνακα 6-σειρών 1350mm

The Hager ZU59VT6APZ2 is a high-quality universal distribution field designed for main and sub-distribution boards as well as meter cabinets. Part of the Hager univers Z series, this 6-row mounting panel offers a robust and flexible solution for electrical installations. With a height of 1350 mm, width of 250 mm, and depth of 35 mm, it provides ample space for up to 12 module units (TE) per row, accommodating a wide range of modular devices.

Advantages

This distribution field features a galvanized steel sheet construction for durability and corrosion resistance. It includes integrated DIN rails and a perforated mounting plate for easy installation of components. The field is compatible with 5-pole busbar systems up to 250A and comes with PE/N terminal blocks (2x PE, 2x N, screw type) for efficient wiring. Its design ensures IP2XC protection when installed in an appropriate enclosure, meeting DIN VDE 0603-1 and DIN 43870-1 standards.

Suitable for

• Main and sub-distribution boards
• Meter cabinets
• Residential, commercial, and industrial electrical installations
• Flush-mounted or surface-mounted applications within Hager univers Z cabinets

Key specifications

• Product Type: Universal Distribution Field / Mounting Panel
• Series: Hager univers Z
• Number of Rows: 6
• Overall Height: 1350 mm
• Overall Width: 250 mm
• Overall Depth: 35 mm
• Material: Galvanized Steel Sheet
• Module Units per Row: 12 TE
• Busbar System Compatibility: 5-pole, up to 250A
• PE/N Terminal Blocks: Included (2x PE, 2x N, screw type)
• Protection Class: IP2XC (when installed)
• Standards: DIN VDE 0603-1, DIN 43870-1, VDE-AR-N 4100
• Rated Operational Voltage: Up to 400V AC
• Rated Insulation Voltage: 1000V AC / 1500V DC
• Color: Metallic (Galvanized)

Recommendations

For optimal performance, use this distribution field with Hager univers Z cabinets and compatible busbar systems. Ensure proper installation by a qualified electrician to meet all safety and compliance standards.
