Hager ZB333U25NT Πλήρες Universal-Schrank 1100x800x205mm IP44 SKII

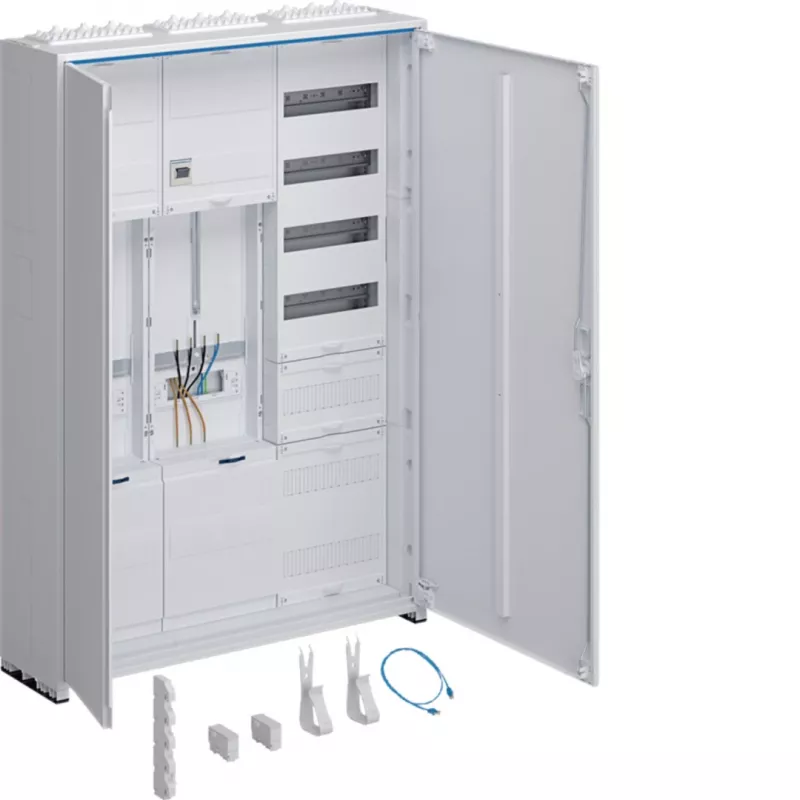

The Hager ZB333U25NT is a high-quality complete universal cabinet designed for meter and distribution applications. With dimensions of 1100 x 800 x 205 mm and an IP44 protection rating, this cabinet offers reliable protection against dust and splashing water. It features a robust steel sheet construction with a powder-coated finish in RAL 9010 (Pure White), ensuring durability and a clean appearance. The cabinet includes an opaque steel door with a standard lock and double-bit key, and is suitable for both surface and flush mounting. It comes with an integrated 5-pole busbar system and complies with DIN VDE 0603-1 and DIN 43870-1 standards.

Advantages

This cabinet provides a complete solution for housing electrical meters and distribution equipment. Its IP44 rating makes it ideal for indoor and sheltered outdoor installations. The double-insulated design (Protection Class II) enhances safety. The pre-punched cable entries at top and bottom simplify installation.

Suitable for

• Meter and distribution cabinets in residential and commercial buildings
• Indoor and sheltered outdoor installations requiring IP44 protection
• Surface or flush mounting applications

Key specifications

• Product Type: Complete Universal Cabinet
• Protection Class: II (Double Insulated)
• IP Protection Rating: IP44
• Dimensions (H x W x D): 1100 x 800 x 205 mm
• Material: Steel sheet
• Surface Finish: Powder-coated
• Color: RAL 9010 (Pure White)
• Door Type: Opaque steel door
• Lock Type: Standard lock with double-bit key
• Mounting Type: Surface-mounted / Flush-mounted (adaptable)
• Application: Meter and Distribution Cabinet
• Number of Meter Fields: 3
• Number of Distribution Fields: 3
• Rated Current (In): Up to 250 A
• Rated Voltage (Un): 400 V AC
• Busbar System: Integrated 5-pole busbar system
• Standards Compliance: DIN VDE 0603-1, DIN 43870-1
• Cable Entry: Top and bottom (pre-punched)

Recommendations

For optimal performance, ensure proper mounting and cable entry sealing to maintain IP44 protection. Use appropriate accessories for meter and distribution field configuration.
