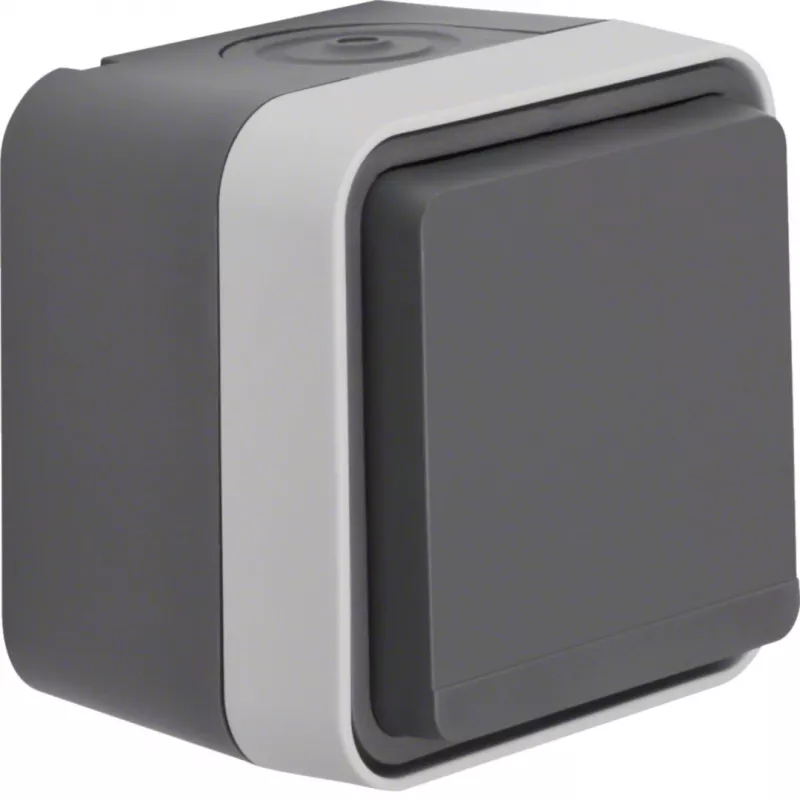

Hager WNC140 επιτοίχια πρίζα SCHUKO με καπάκι, IP55, γκρι

The Hager WNC140 stands apart from typical surface-mounted sockets by combining robust IP55 protection with a hinged lid that keeps out dust and moisture, making it a reliable choice for demanding environments. Its grey thermoplastic housing is UV-resistant and halogen-free, ensuring long-term durability even in exposed locations. With a single SCHUKO outlet rated at 16 A / 250 V, this socket delivers safe and efficient power for a wide range of appliances. The integrated child protection feature adds an extra layer of safety, preventing accidental contact with live parts. Whether installed in workshops, garages, or outdoor covered areas, the WNC140 offers a practical and secure power solution.

Highlights

• IP55 rated: protected against dust and water jets
• Hinged lid (flap cover) keeps the socket clean and safe when not in use
• Surface-mounted design for easy installation on walls or panels
• SCHUKO (Type F) socket, standard in Europe, with 2P+E configuration
• Built-in child protection shutters prevent accidental insertion
• Robust thermoplastic material, halogen-free and UV-resistant
• Impact resistance IK07 for mechanical durability
• Screw terminals accept conductors up to 2.5 mm²

In daily use

Thanks to its hinged lid, the WNC140 is ideal for areas where the socket may be exposed to splashes or dust. The lid snaps shut securely, maintaining the IP55 rating when closed. Even with the lid open, the socket remains safe due to the child protection mechanism. The grey colour blends well with industrial and utility settings, while the compact design keeps the profile low. Installation is straightforward: the surface-mounted base allows fixing to any flat surface, and the screw terminals provide a reliable connection. This socket is a dependable choice for both professional electricians and DIY enthusiasts.

Full specifications

• Brand: Hager
• Model: WNC140
• MPN: WNC140
• EAN: 3250610102206
• Socket type: SCHUKO (Type F)
• Number of sockets: 1
• Mounting type: Surface-mounted
• IP rating: IP55
• Colour: Grey
• Rated voltage: 250 V AC
• Rated current: 16 A
• Frequency: 50/60 Hz
• Number of poles: 2P+E
• Material: Thermoplastic
• Halogen-free: Yes
• With child protection: Yes
• UV resistant: Yes
• Impact resistance: IK07
• Terminal capacity: Up to 2.5 mm²
• Connection type: Screw terminals
• Series: Hager W.1

Final note

For a surface-mounted socket that doesn't compromise on safety or durability, the Hager WNC140 is a solid investment. Its IP55 rating and hinged lid make it suitable for challenging environments, while the child protection and robust construction ensure peace of mind.
