Hager WNA694 Σύνδεσμος συνδυασμού W.1 IP55 Γκρι

IP55-rated combination connector for linking Hager W.1 junction boxes, ensuring dust and water jet protection in demanding installations.

Overview

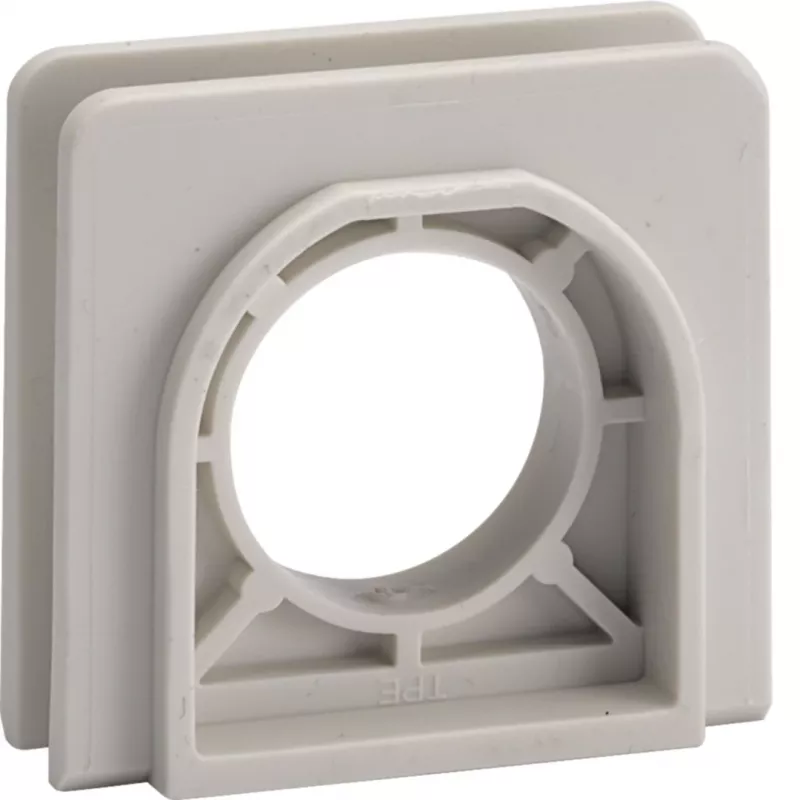

The Hager WNA694 is a combination connector from the W.1 series, designed to connect W.1 junction boxes together. It provides a secure cable passage between connected boxes, maintaining the integrity of the enclosure system.

What stands out

• IP55 protection against dust and water jets
• IK07 impact resistance for mechanical durability
• Halogen-free thermoplastic construction
• Integrated snap-on mounting for quick installation
• UV resistant for outdoor applications

Technical details

• Product Type: Combination Connector
• Series: Hager W.1
• Application: Connecting W.1 Junction Boxes
• Ingress Protection: IP55
• Impact Resistance: IK07
• Material: Thermoplastic
• Colour: Grey
• Halogen-free: Yes
• Glow Wire Test: 750 °C
• Ambient Temperature Range: -25 to +40 °C
• UV Resistant: Yes
• Mounting Type: Integrated / Snap-on
• Function: Cable passage between connected boxes

Our verdict

A reliable connector for expanding Hager W.1 junction box systems, with robust protection and easy installation.
