HAGER WAS4154 USB-C Power Delivery Μονάδα φόρτισης 65W

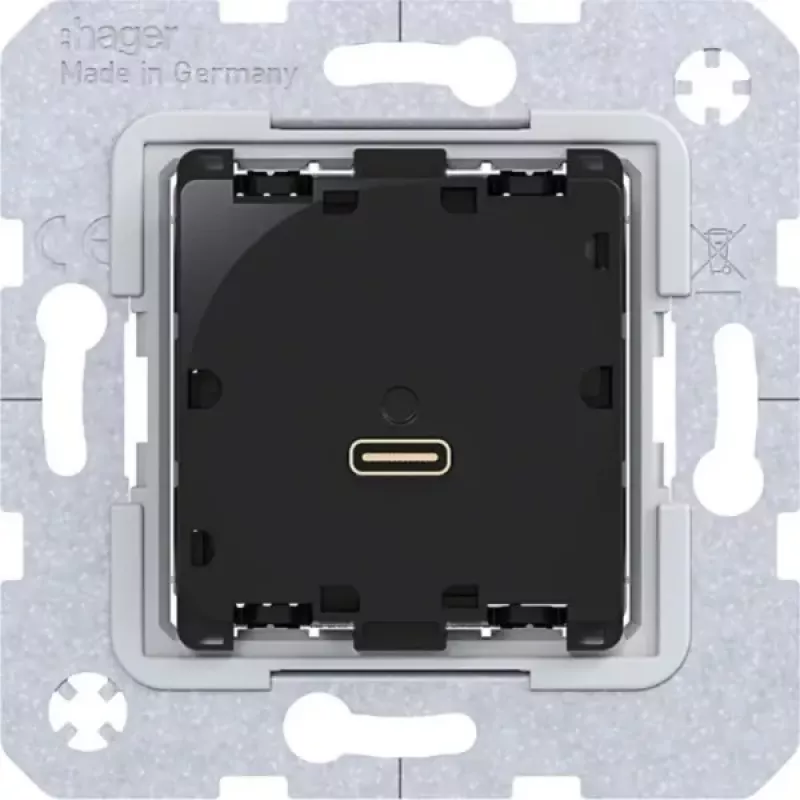

The HAGER WAS4154 is a flush-mounted USB-C charging module that delivers up to 65W of power via USB Power Delivery, making it a compact alternative to bulky desktop chargers. It integrates into standard electrical installations, providing fast charging for laptops, tablets, and smartphones directly from a wall outlet.

Highlights

• 65W USB-C Power Delivery output
• Single USB-C port with PD profiles: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A
• Flush-mounted design for seamless integration
• Low standby power consumption under 0.1W

In daily use

Install the WAS4154 in a standard flush-mounted box and connect it to a 230V AC supply. The module's screw terminals ensure a secure connection. It automatically negotiates the optimal voltage and current with connected devices, providing up to 65W for compatible laptops and fast charging for phones and tablets. Protection against overload, short circuit, and overtemperature safeguards both the module and connected devices.

Full specifications

• Input voltage: 230V AC
• Input frequency: 50/60 Hz
• Output power: 65W max
• USB standard: USB Power Delivery
• USB Type-C ports: 1
• Output voltage profiles: 5V, 9V, 12V, 15V, 20V
• Output current profiles: 3A (5V/9V/12V/15V), 3.25A (20V)
• Standby power consumption: < 0.1W
• Operating temperature: 0°C to +40°C
• Housing material: Plastic
• Mounting depth: 38 mm
• Protection features: Overload, short circuit, overtemperature

Final note

The WAS4154 offers a clean, high-power USB-C charging solution for modern installations, eliminating the need for external power adapters.
