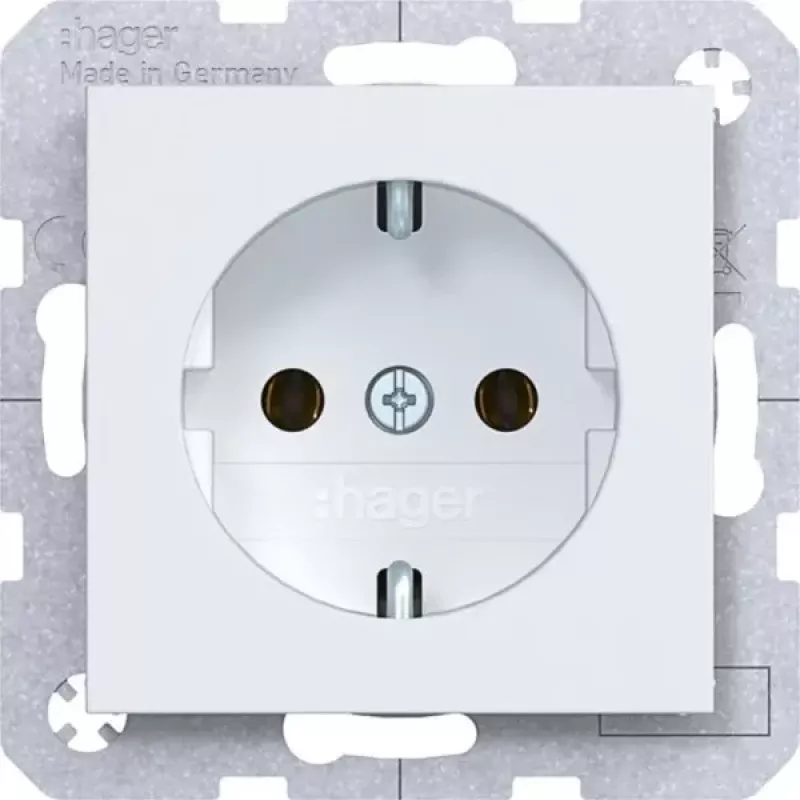

Hager WAS1100WM Πρίζα Ax/Cx Lichtweiß

The Hager WAS1100WM is a high-quality flush-mounted Schuko socket outlet from the Ax/Cx design line, finished in light white (RAL 9010). Designed for reliable and safe power distribution in residential and commercial installations, this single-gang socket features an integrated hinged cover and child protection for enhanced safety.

Advantages

Robust thermoplastic construction ensures durability and longevity. The hinged cover protects against dust and moisture when closed, achieving IP44 protection. Integrated child protection prevents accidental insertion of foreign objects. Halogen-free and UV-resistant materials make it suitable for a wide range of environments.

Suitable for

• Flush-mounted installations in walls
• Living areas, offices, and commercial spaces
• Applications requiring IP44 protection with cover closed
• Use with standard Schuko plugs (Type F)

Key specifications

• Socket Type: Schuko (Type F)
• Number of Sockets: 1
• Colour: Light White (RAL 9010)
• Mounting Type: Flush-mounted
• Protection Class: IP44 (with cover closed)
• Rated Voltage: 250 V AC
• Rated Current: 16 A
• Frequency: 50/60 Hz
• Connection Type: Screw terminals
• Terminal Capacity: 1.5 - 2.5 mm²
• Material: Thermoplastic
• Halogen-free: Yes
• UV-resistant: Yes
• Special Features: Hinged cover, Integrated child protection
• Design Line: Ax/Cx
• Operating Temperature: -5 to 40 °C
• Impact Resistance: IK05
• Mounting Depth: Approx. 32 mm

Recommendations

For a complete installation, pair with compatible Hager frames and accessories from the Ax/Cx series. Ensure proper mounting depth and use appropriate screw terminals for secure connections.
