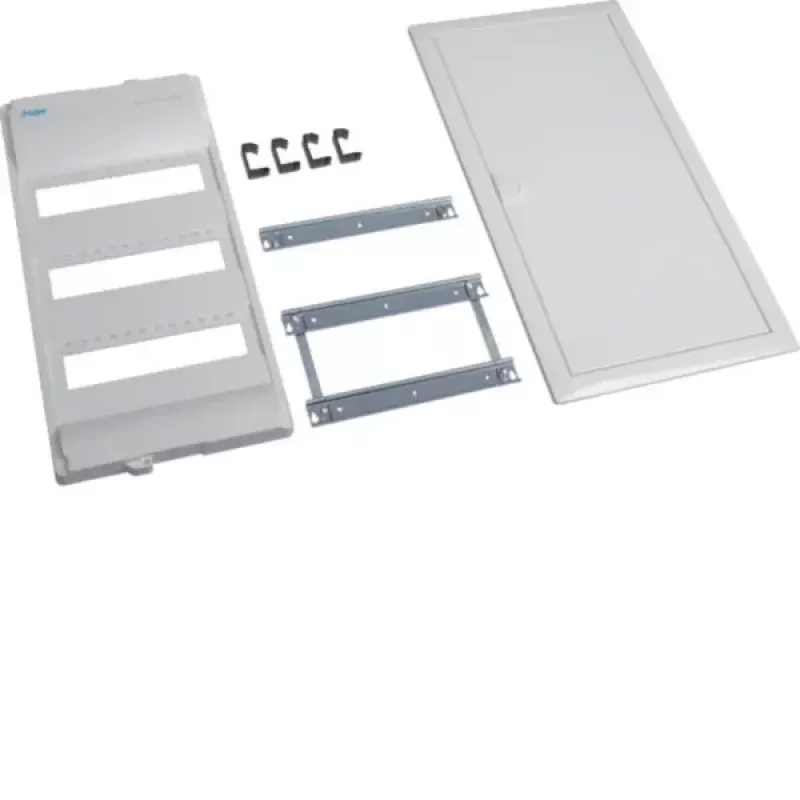

Hager Volta πακέτο επέκτασης για ακροδέκτες, 3 σειρών VZ36NRK

Equipping a Hager Volta distribution board with reliable PE and N terminal blocks can be a hassle when parts are ordered separately. This expansion package provides the necessary terminal blocks and mounting material to complete a 3-row configuration, ensuring safe and organized connections.

Who is it for

Electricians and panel builders installing or upgrading Hager Volta distribution boards, whether flush-mounted or surface-mounted, who need a convenient, compatible set of PE and N terminal blocks.

Main features

• Complete set for 3-row distribution boards: includes PE terminal block, N terminal block, and mounting material.
• High connection capacity: main connections accept up to 25 mm² conductors, branch connections up to 4 mm².
• Generous terminal count: 23 PE terminals and 23 N terminals for extensive wiring.
• Standard color coding: PE terminal block in green/yellow, N terminal block in blue for quick identification.
• Robust materials: brass or nickel-plated brass conductors with plastic insulation for durability.
• Flexible mounting: snap-on or screw-on installation to suit different enclosure designs.

Specifications

• Product type: Expansion package for terminal blocks
• Series compatibility: Hager Volta
• Number of rows supported: 3
• PE terminal block main connections: 2 x 25 mm²
• PE terminal block branch connections: 21 x 4 mm²
• N terminal block main connections: 2 x 25 mm²
• N terminal block branch connections: 21 x 4 mm²
• Total PE terminals: 23
• Total N terminals: 23
• Material (terminal conductors): Brass / nickel-plated brass
• Material (terminal insulation): Plastic
• Mounting type: Snap-on / screw-on
• Suitable for enclosure type: Flush-mounted (UP) and surface-mounted (AP) Volta distribution boards
• Terminal block color (PE): Green/yellow
• Terminal block color (N): Blue

Tips

Verify that your distribution board has enough space for the 3-row terminal block arrangement. Use appropriate torque when tightening connections to ensure safe and reliable contact.
