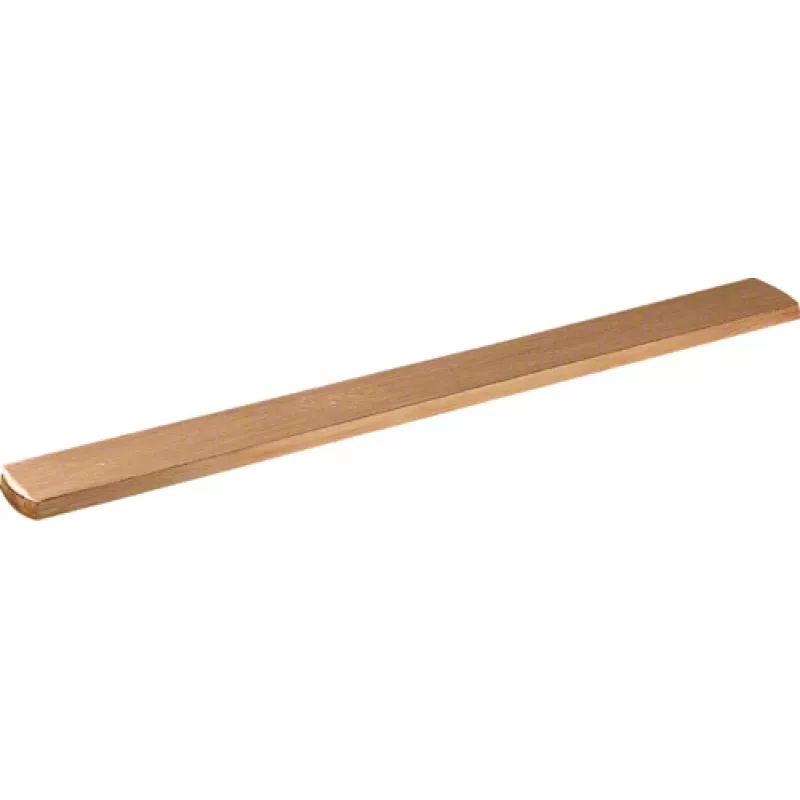

Hager UM24A Μονοπολική χάλκινη μπάρα 315A 995mm

Electrical busbar for power distribution in switchgear and panel boards. Made of copper with a 315 A maximum current rating, this flat bar conductor ensures efficient and reliable power transmission.

Advantages

High electrical conductivity and good corrosion resistance provide long-term performance. The flat bar design offers a compact cross-section of 100 mm², suitable for high-current applications.

Suitable for

• Power distribution systems
• Switchgear assemblies
• Panel boards

Key specifications

• Material: Copper
• Colour: Copper
• Maximum current: 315 A
• Length: 995 mm
• Width: 20 mm
• Thickness: 5 mm
• Cross-sectional area: 100 mm²
• Number of poles: 1

Recommendations

Ideal for electrical installations requiring a robust and efficient busbar solution.
