Hager U84LM universZ Κουτί σύνδεσης καλωδίων 324x307x149mm SKII

Rated at 63 A and 400 V AC, this cable connection box handles main terminals up to 50 mm², making it a robust entry point for meter cabinet installations.

Overview

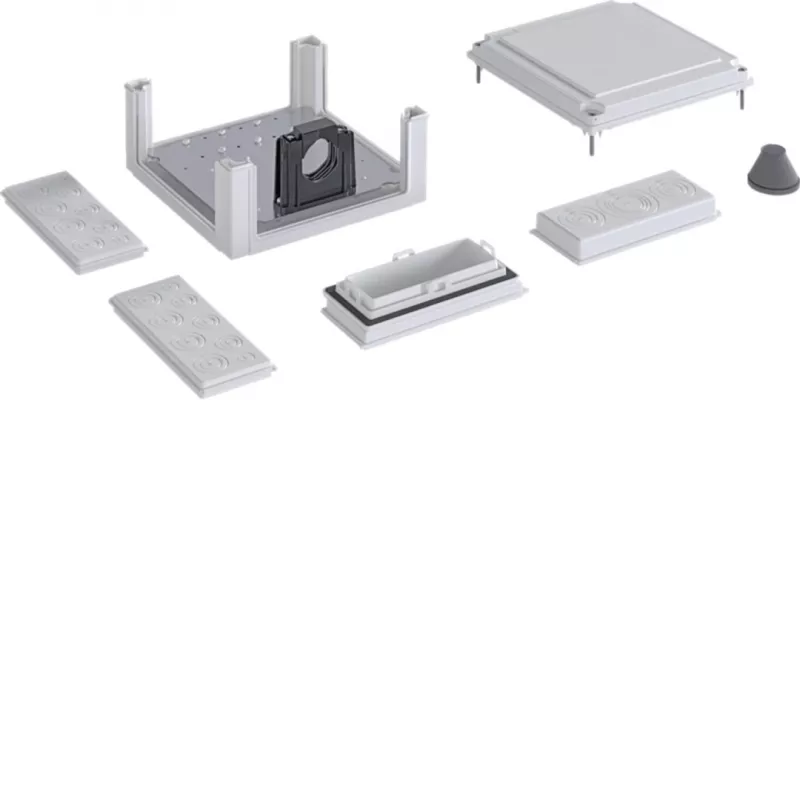

The Hager U84LM is a cable connection box from the universZ series, designed for integration into Hager universZ meter cabinet systems. It provides a central point for connecting incoming supply cables to the distribution system, ensuring safe and organized power distribution.

What stands out

• 5-pole main terminal block (L1, L2, L3, N, PE) supports conductors up to 50 mm².
• High-impact polystyrene housing in light grey (RAL 7035) with IP44 protection.
• Electrical protection class II (SKII) for enhanced safety without earth connection.
• Pre-punched knockouts for flexible cable entry from multiple sides.
• Halogen-free material with glow-wire resistance up to 650 °C.

Technical details

• Product type: Cable connection box
• Series: universZ
• Material: High-impact polystyrene
• Colour: Light grey (RAL 7035)
• Protection class (IP): IP44
• Electrical protection class: SKII (Class II)
• Rated current: 63 A
• Rated voltage: 400 V AC
• Main terminal cross-section: Up to 50 mm²
• Number of main terminals: 5-pole
• Mounting type: For universZ meter cabinet systems
• Cover type: Opaque
• Cable entry: Pre-punched knockouts
• Halogen-free: Yes
• Glow-wire test: 650 °C (IEC 60695-2-11)
• Operating temperature range: -5 to +40 °C

Our verdict

A reliable and safe cable connection box for Hager universZ meter cabinets, offering high current capacity and robust protection in a compact design.
