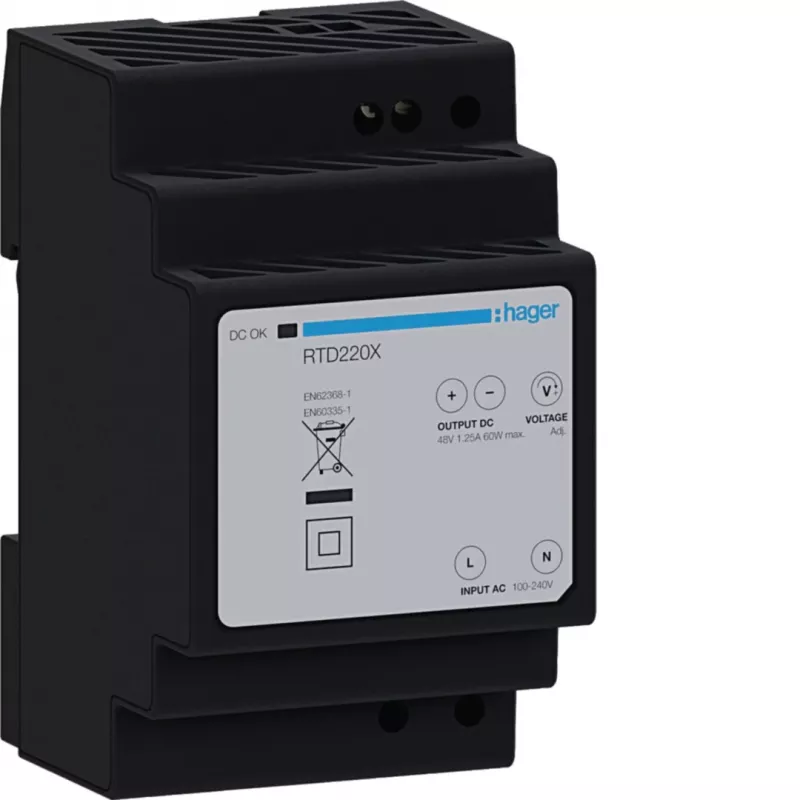

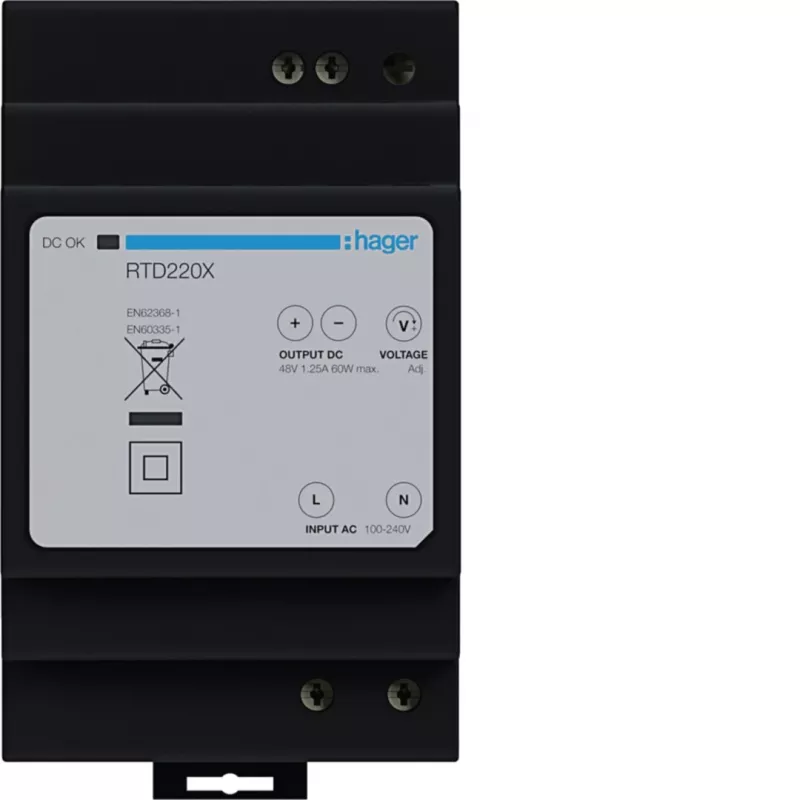

Hager RTD220X 48V DC 60W Τροφοδοτικό ράγας DIN

The Hager RTD220X is a switched-mode power supply unit engineered for DIN rail installation, delivering a stable 48V DC output at 60W. Its compact 3 TE width conserves space in distribution boards while providing reliable power for building automation and control circuits.

Highlights

• Wide input range: 100-240V AC, 50/60 Hz
• Output: 48V DC, 1.25 A, 60 W
• DIN rail mountable (35mm)
• Compact 3-module width
• Overload and short-circuit protection
• Efficiency >85%
• Operating temperature: -20 to +50 °C

In daily use

Install the RTD220X on a standard 35mm DIN rail and connect input and output via screw terminals. The built-in protections safeguard connected loads against overloads and short circuits, while the wide input voltage range ensures compatibility with various mains supplies.

Full specifications

• Input voltage: 100-240V AC
• Input frequency: 50/60 Hz
• Output voltage: 48V DC
• Output current: 1.25 A
• Output power: 60 W
• Mounting type: DIN rail (35mm)
• Module width: 3 TE
• Efficiency: >85%
• Overload protection: Yes
• Short-circuit protection: Yes
• Power supply type: Switched-mode
• Input connection: Screw terminals
• Output connection: Screw terminals
• Operating temperature range: -20 to +50 °C

Final note

The RTD220X is a dependable power solution for professional electrical installations, combining compact design with essential protective features.
