Hager Προφίλ Ημικύλινδρος ZAY50994 με 2 Κλειδιά 40x20x40

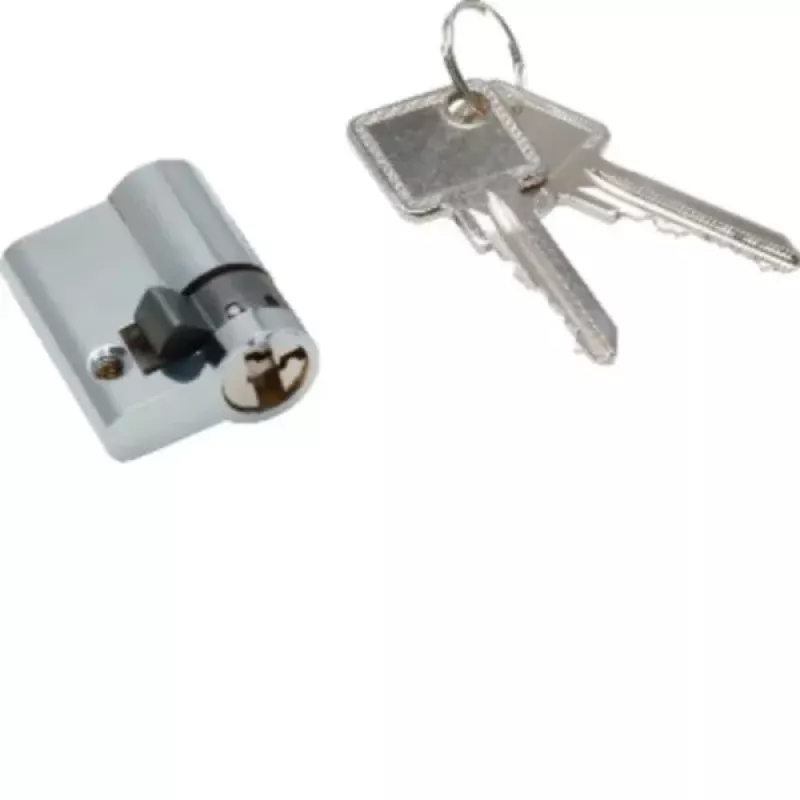

Control cabinet and switchgear doors often need a simple, reliable locking solution that can be operated from one side only. The Hager Profile Half Cylinder ZAY50994 provides exactly that: a mechanical half cylinder with two keys, sized 40 mm in length with a 10 mm cam offset, ready to fit standard profile cylinder openings.

Who is it for

Electricians, panel builders, and maintenance technicians who need to secure control cabinets, switchgear, or other enclosures with a single-sided locking mechanism. It suits installations where access is required from one side only, and where a keyed-different cylinder is acceptable.

Main features

• Profile half cylinder with 40 mm length (A-dimension) and 10 mm cam offset (B-dimension)
• Supplied with 2 keys
• Brass construction with nickel-plated finish
• 5 pin tumblers for medium security
• Keyed different locking
• Standard cam design

Specifications

• Cylinder type: Profile half cylinder
• Cylinder length (A-dimension): 40 mm
• Cam offset (B-dimension): 10 mm
• Number of keys included: 2
• Material: Brass
• Surface finish: Nickel-plated
• Number of pin tumblers: 5
• Locking type: Keyed different
• Cam design: Standard cam
• Application area: Control cabinets, switchgear, doors with single-sided locking

Tips

When replacing an existing half cylinder, measure the A-dimension (length from the front face to the centre of the cam) and B-dimension (cam offset) to ensure a proper fit. The ZAY50994 is keyed different, so each cylinder has a unique key combination; order additional cylinders if you need keyed alike functionality.
