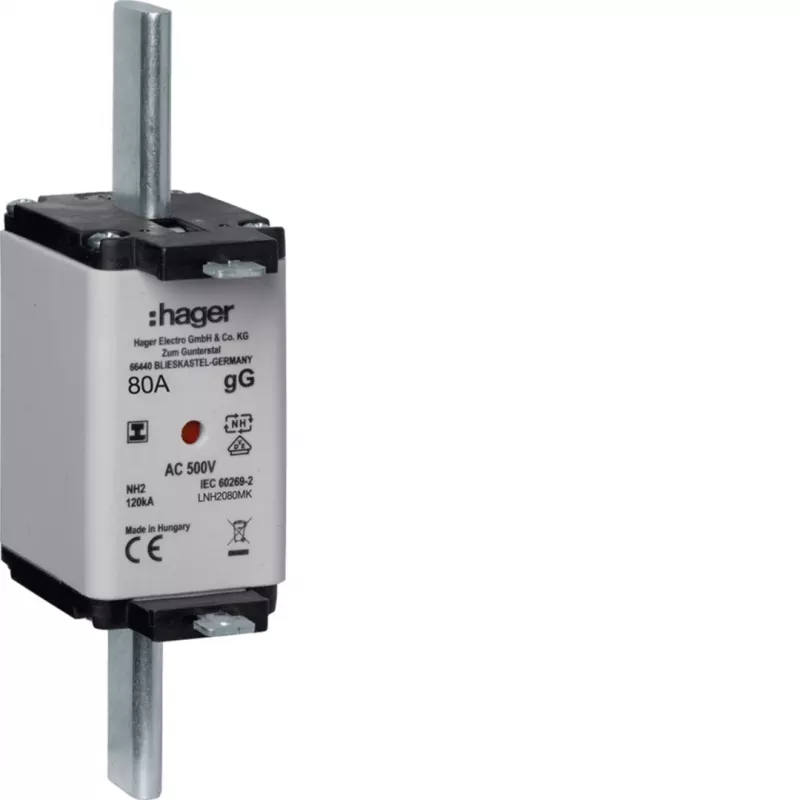

HAGER LNH2080MK ασφάλεια NH 80A 500V gG μέγεθος 2C με δείκτη

Protecting cables and lines from overloads and short circuits demands a fuse link that combines precise breaking characteristics with reliable indication. The HAGER LNH2080MK NH fuse link delivers exactly that: an 80 A rated current, 500 V AC voltage class, and gG operating characteristic for general-purpose protection in low-voltage distribution systems.

Who is it for

Electricians, panel builders, and maintenance technicians who install or service NH fuse bases in industrial and commercial power distribution. This fuse link is suited for cable and line protection where a full-range breaking capacity and clear status indication are required.

Main features

• NH size 2C (NH2C) fuse link for standard NH fuse bases
• Rated current 80 A, rated voltage 500 V AC
• Operating class gG: full-range breaking capacity for general-purpose protection
• Breaking capacity 120 kA
• With indicator (Kennmelder) for visual status detection
• Ceramic body with silver-plated contact blades
• Power dissipation 10.5 W
• Operating temperature range -5 to +40 °C
• Complies with IEC 60269-2

Specifications

• Fuse type: NH fuse link
• Fuse size: NH2C (Size 2C)
• Rated current: 80 A
• Rated voltage: 500 V AC
• Operating class: gG
• Breaking capacity: 120 kA
• Indicator: Yes (Kennmelder)
• Application: Cable and line protection
• Standard: IEC 60269-2
• Mounting: For NH fuse bases
• Construction: Full-range breaking capacity
• Power dissipation: 10.5 W
• Operating temperature: -5 to +40 °C
• Material: Ceramic body, silver-plated contact blades
• Number of poles: 1
• Switching function: Non-disconnectable (fuse link)

Tips

Always verify that the fuse link's rated current and voltage match the circuit requirements. The indicator allows quick identification of a blown fuse without removal. Store in a dry environment and handle by the contact blades with care to avoid damage.
