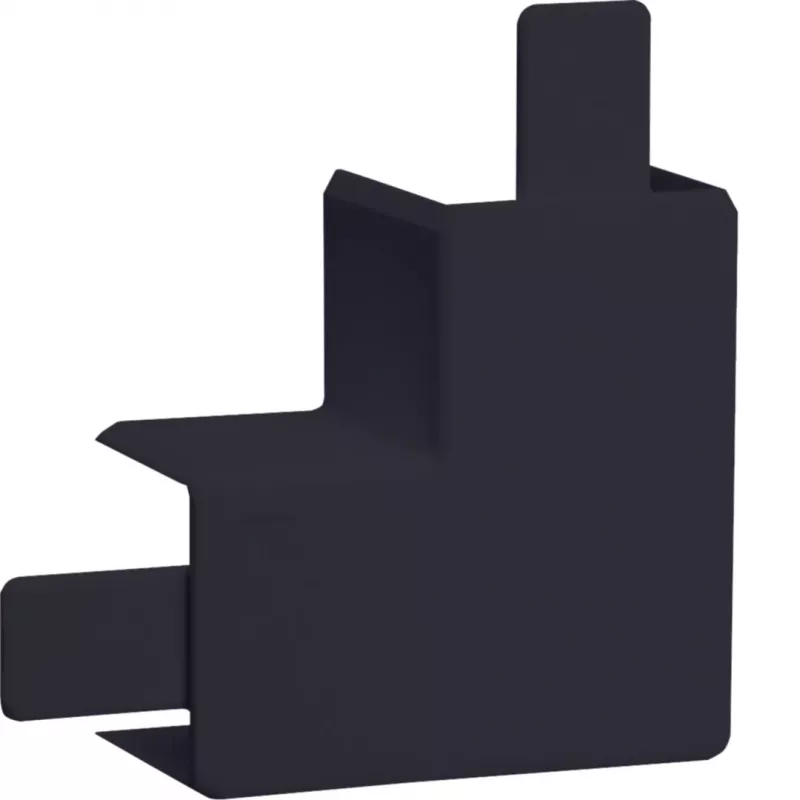

Hager LFF2003559011 Επίπεδη γωνία 33x20 mm μαύρο γραφίτη

The Hager LFF2003559011 flat angle is a precision-moulded corner piece for the tehalit.LFF trunking system, enabling clean 90° horizontal changes of direction in 33 x 20 mm duct runs. Its snap-on mounting eliminates the need for tools or adhesives, while the pure white (RAL 9010) PVC body matches the trunking profile for a seamless finish.

Highlights

• Compatible with Hager tehalit.LFF trunking, 33 mm height × 20 mm width
• 90° horizontal angle for neat corner transitions
• Snap-on mounting for quick, secure installation
• Pure white (RAL 9010) PVC construction, UV-resistant
• Flame retardant according to DIN EN 50085-1

In daily use

Installers appreciate the LFF2003559011 for its exact fit and tool-free assembly. The angle snaps firmly onto the trunking base, maintaining the duct's protective enclosure around cables at corners. The lead-free PVC material is self-extinguishing and UV-resistant, suitable for indoor installations where appearance and safety matter.

Full specifications

• Product type: Flat angle / corner piece
• Compatible trunking system: Hager tehalit.LFF
• Compatible trunking dimensions: 33 mm height × 20 mm width
• Angle: 90° (horizontal)
• Material: Polyvinyl chloride (PVC)
• Colour: Pure white (RAL 9010)
• Halogen-free: No
• Self-extinguishing: Yes
• Mounting type: Snap-on
• UV-resistant: Yes
• Temperature range: -5 to +60 °C
• Protection class: IP30 (when installed)
• Impact resistance: IK07
• Fire behaviour: Flame retardant (DIN EN 50085-1)
• Lead-free: Yes
• Application: Cable routing, electrical installations
• Manufacturer series: LFF

Final note

A reliable corner solution for professional trunking installations, ensuring both functionality and a clean aesthetic.
