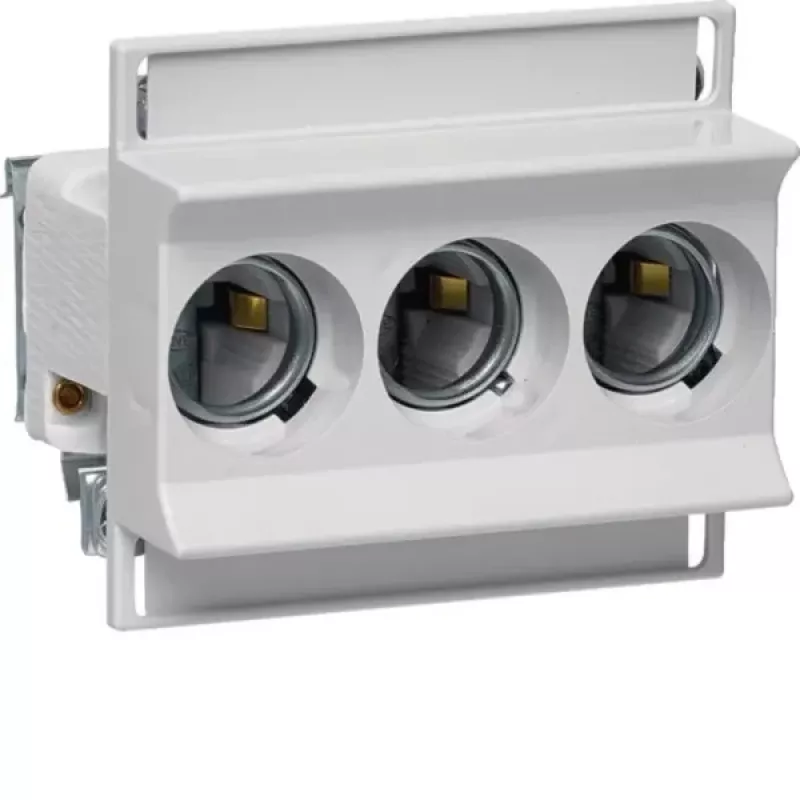

HAGER LD02K63-3SS D02 63A 3-πολική κεραμική βάση ασφάλειας

Rated for 63 A at 400 V AC, this 3-pole D02 ceramic fuse base provides robust overcurrent protection in a compact 3-module DIN rail housing.

Overview

The HAGER LD02K63-3SS is a D0 (Neozed) fuse base designed for D02 fuse links. It features three poles, screw terminals, and a ceramic body for high thermal withstand. Mounting is on a standard 35 mm DIN rail.

What stands out

• 3-pole D02 fuse base for 63 A circuits
• Ceramic construction ensures excellent heat resistance
• Compact 3-module width (53.5 mm) saves panel space
• Screw terminals accept rigid conductors up to 25 mm²

Technical details

• Fuse system: D0 (Neozed)
• Fuse size: D02
• Number of poles: 3
• Rated current: 63 A
• Rated voltage: 400 V AC
• Material: Ceramic
• Mounting type: DIN rail (top-hat rail)
• Connection type: Screw terminals
• Terminal capacity (rigid): 1.5 - 25 mm²
• Terminal capacity (flexible): 1.5 - 16 mm²
• Degree of protection: IP20
• Standards compliance: IEC/EN 60269-3
• Module width: 3 modules (53.5 mm)
• Operating temperature: -5°C to +40°C
• Color: Grey/White
• Application: Overcurrent protection in electrical installations

Our verdict

A reliable ceramic fuse base for three-phase D02 protection up to 63 A, ideal for industrial and commercial distribution boards.
