Hager KN99E Γέφυρα PE QuickConnect, 2-πολική, πράσινο/κίτρινο, συσκευασία 10 τεμ.

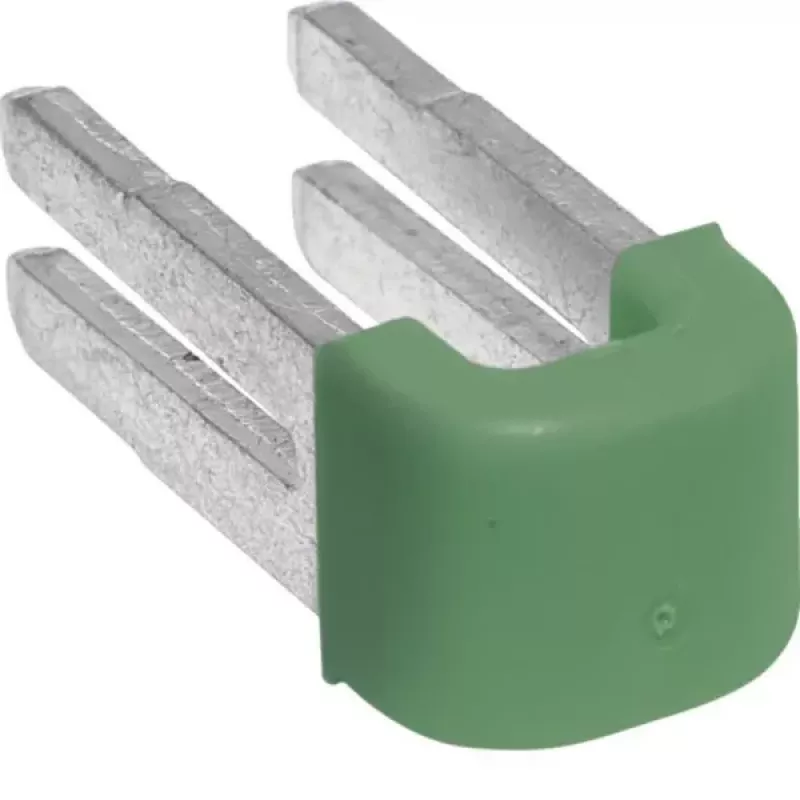

The Hager KN99E is a protective earth (PE) jumper bar engineered for Quick Connect terminal blocks, enabling rapid bridging of two adjacent poles without tools. Unlike traditional screw-type bridges, this plug-in accessory snaps directly into compatible Viking 3 terminal blocks, cutting installation time and reducing wiring errors in control cabinets and distribution boards.

Highlights

• Quick Connect plug-in design for tool-free installation
• Bridges two poles for PE distribution
• Pack of 10 jumper bars
• Green/yellow insulation for clear PE identification
• Compatible with Legrand Viking 3 Quick Connect terminal blocks

In daily use

Electricians and panel builders will appreciate the KN99E's secure snap-in connection, which maintains reliable earthing continuity even under vibration. The green/yellow polyamide housing provides high dielectric strength and easy visual verification of protective earth circuits. Rated up to 41 A and 1000 V when used with matching terminal blocks, it suits industrial control systems and electrical panel wiring.

Full specifications

• Product type: Jumper bar / plug-in bridge
• Function: Protective Earth (PE)
• Connection technology: Quick Connect
• Number of poles bridged: 2
• Colour: Green/Yellow
• Conductor material: Copper alloy
• Insulation material: Polyamide (PA)
• Rated current: Up to 41 A
• Rated voltage: Up to 1000 V
• Mounting type: Plug-in
• Series: Viking 3
• Operating temperature range: -25°C to +70°C
• Quantity per pack: 10

Final note

The KN99E is a genuine Hager accessory, designed for seamless integration with Quick Connect terminal blocks in professional electrical installations.
