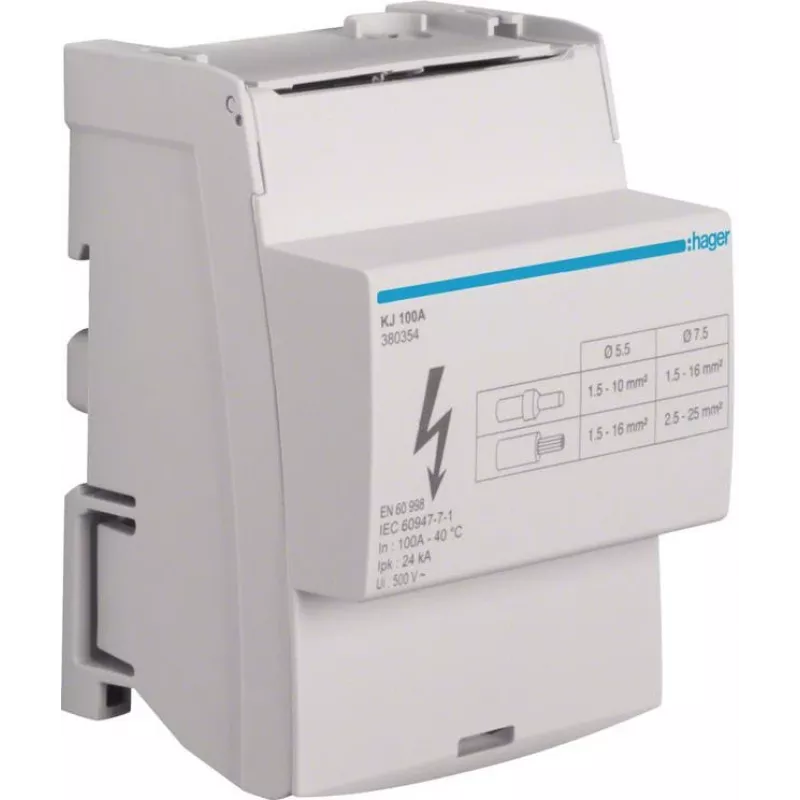

Hager KJ100A 4-πολικός Ακροδέκτης Διανομής 100A

The Hager KJ100A is a high-quality 4-pole distribution block designed for efficient power distribution in electrical installations. With a rated current of 100 A and voltage of 500 V AC, it ensures reliable performance in demanding environments. This distribution block features screw terminals for secure connections and supports both rigid and flexible conductors. It is suitable for DIN rail or panel mounting, making it versatile for various applications.

Advantages

Robust construction with polyamide housing and copper/brass terminals ensures durability and excellent conductivity. The IP20 protection rating provides safety against solid objects. Compliant with EN 60947-7-1 standard, guaranteeing quality and reliability.

Suitable for

• Power distribution in industrial and commercial electrical panels
• Branch circuit connections in distribution boards
• Use in main and sub-distribution systems

Key specifications

• Number of Poles: 4
• Rated Current (In): 100 A
• Rated Voltage (Un): 500 V AC
• Main Conductor Cross-section (Rigid): 10 - 50 mm²
• Main Conductor Cross-section (Flexible): 10 - 35 mm²
• Branch Conductor Cross-section (Rigid): 1.5 - 16 mm²
• Branch Conductor Cross-section (Flexible): 1.5 - 16 mm²
• Number of Main Connections per Pole: 1
• Number of Branch Connections per Pole: 6
• Connection Type: Screw terminals
• Mounting Type: DIN rail / Panel mount
• Degree of Protection (IP): IP20
• Rated Short-Circuit Current (Icw): 4.5 kA (1s)
• Rated Impulse Withstand Voltage (Uimp): 6 kV
• Operating Temperature Range: -25 to 70 °C
• Housing Material: Polyamide
• Terminal Material: Copper / Brass
• Standard: EN 60947-7-1
• Colour: Grey

Recommendations

For optimal performance, ensure proper tightening torque as per manufacturer guidelines. Use appropriate cable lugs for flexible conductors. This distribution block is ideal for new installations or upgrades in commercial and industrial settings.
