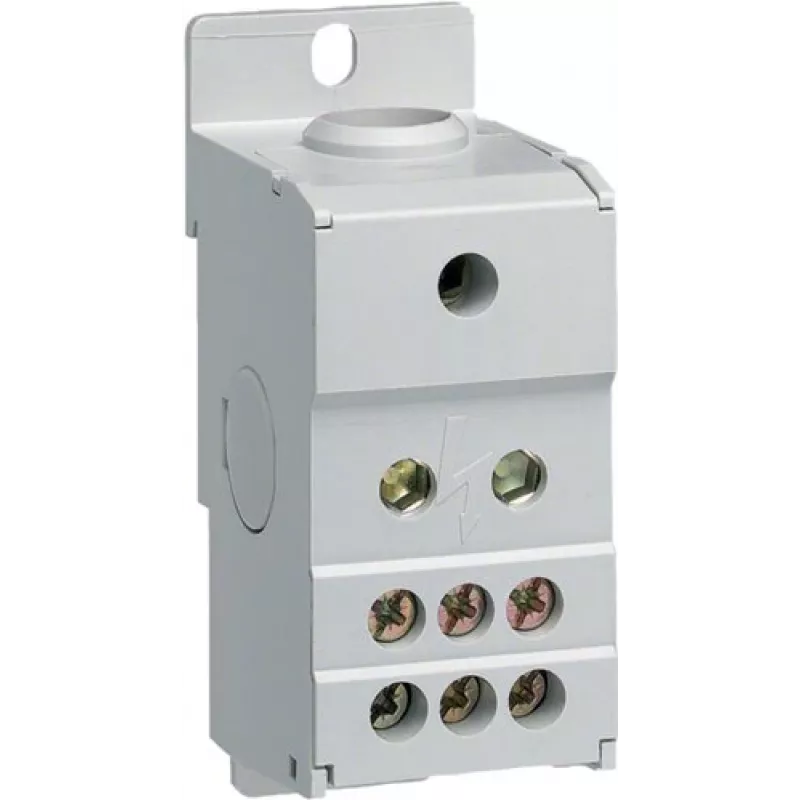

HAGER KJ02C Μονοπολικό μπλοκ διανομής 160A

Distribution block for electrical distribution boards, rated for 160 A and 1-pole operation. It provides a reliable connection point for distributing power from a single input conductor to multiple output conductors.

Advantages

Compact design with screw terminals allows secure connection of conductors up to 70 mm² input and multiple outputs up to 16 mm². The polyamide housing ensures durability and electrical insulation.

Suitable for

• Distribution boards in residential and commercial buildings
• Industrial control panels
• DIN rail or panel mounting applications

Key specifications

• Number of poles: 1
• Rated current: 160 A
• Rated voltage: 1000 V AC / 1500 V DC
• Input cross-section: 1 x 10-70 mm²
• Output cross-section: 2 x 2.5-16 mm² or 4 x 2.5-10 mm²
• Connection type: screw terminal
• Mounting: DIN rail (EN 50022) or panel
• Housing material: polyamide (PA6.6)
• Conductor material: tinned copper
• Colour: grey

Recommendations

Ensure conductors are properly stripped and torqued according to manufacturer guidelines for reliable connections.
