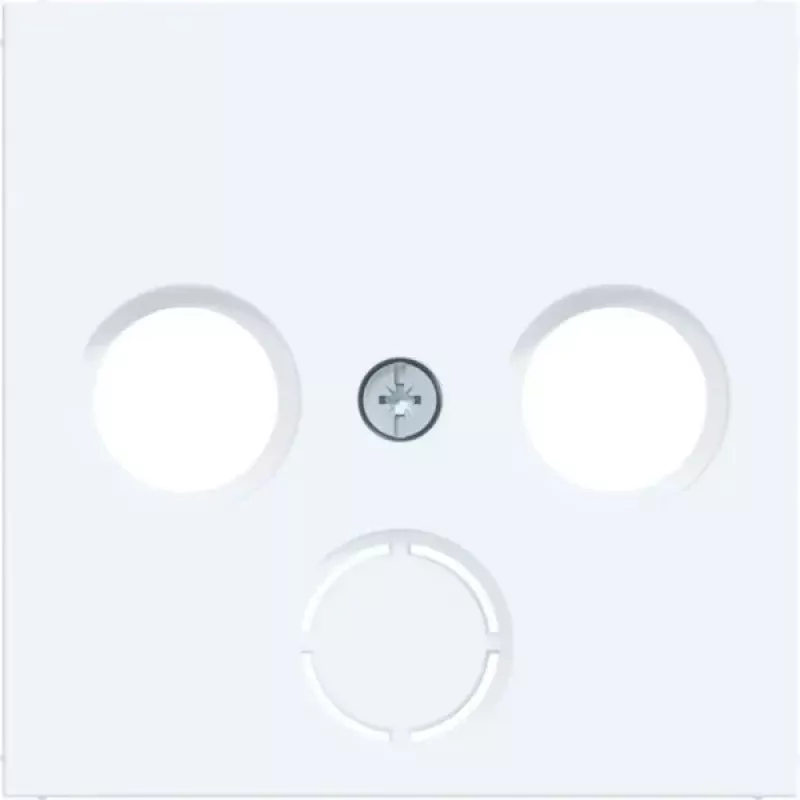

Hager Κεντρικό τεμάχιο AX/CX Reinweiß WAF1168WM

The Hager WAF1168WM Central Piece is a high-quality central plate designed for UAE/TAE sockets in the AX/CX series. Manufactured by Hager, a leading brand in electrical installation, this central piece combines functionality with a sleek, pure white finish (RAL 9010) that complements modern interiors. Made from durable, halogen-free thermoplastic (polycarbonate) with a glossy surface, it offers excellent UV stability and impact resistance (IK05). The clip-on mounting ensures easy installation on Hager AX/CX frames and inserts. With an integrated labeling field, it provides clear identification for data and telephone connections, making it ideal for structured cabling in residential and commercial environments.

Advantages

This central piece ensures reliable performance and long-lasting aesthetics. Its UV-stabilized material prevents yellowing over time, while the halogen-free composition contributes to environmental safety. The glossy finish is easy to clean, and the labeling field simplifies network management. Compatible with the entire Hager AX/CX system, it offers flexibility for future expansions.

Suitable for

• Data and telephone socket installations using UAE/TAE connectors
• Hager AX/CX series frames and inserts
• Residential, commercial, and industrial electrical systems
• Applications requiring clear labeling of connections

Key specifications

• Product Type: Central Plate (Zentralstück)
• Application: For UAE/TAE Sockets (Data/Telephone)
• Design Line: AX/CX
• Color: Pure White (Reinweiß) - RAL 9010
• Material: Thermoplastic (PC - Polycarbonate)
• Surface Finish: Glossy
• Halogen-free: Yes
• With Labeling Field: Yes
• Mounting Type: Clip-on (Steckmontage)
• UV-stabilized: Yes
• Impact Resistance: IK05
• Operating Temperature: -5 to +45 °C
• Storage Temperature: -25 to +55 °C
• Compatibility: Hager AX/CX series frames and inserts
• System Size: 55x55 mm (inner module compatibility)

Recommendations

For a complete installation, pair this central piece with Hager AX/CX frames and matching UAE/TAE inserts. Ensure proper clipping to achieve a secure fit. The labeling field can be used with standard labeling strips for professional network documentation.
