Hager GMSET019016 Υποδοχή HDMI για συστήματα καναλιών στηθαίου

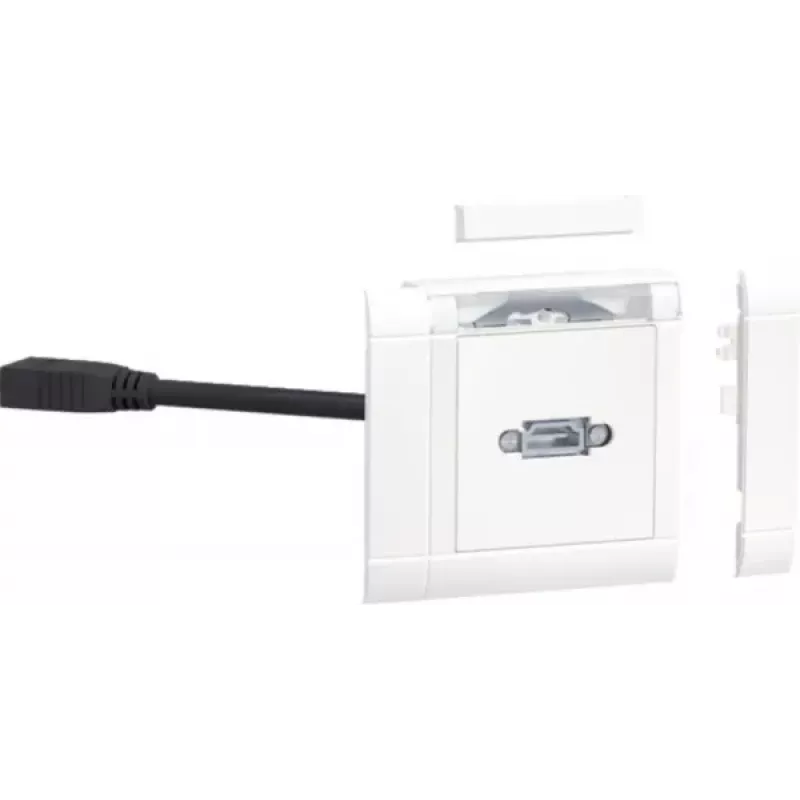

When a room needs a clean HDMI connection point without visible cables or wall clutter, this device insert provides a flush, snap-in HDMI port inside a Hager tehalit skirting board channel. It solves the problem of routing high-speed video signals to a fixed location while keeping the installation discreet and serviceable.

Who is it for

Electricians and AV installers working on commercial or residential projects that use Hager tehalit skirting board systems. It suits anyone who wants a permanent HDMI outlet integrated into the building infrastructure rather than a loose cable.

Main features

• HDMI Type A female connector on both front and rear for straightforward pass-through.
• Supports High Speed HDMI signals for Full HD and 3D content.
• Snap-in mounting designed for Hager tehalit skirting board channels (BRN, BRS, SL).
• 45x45 mm module footprint fits standard 45 mm system openings.
• Halogen-free thermoplastic housing in pure white (RAL 9010).
• IP20 protection rating for indoor use.

Specifications

• Connection type: HDMI
• Number of ports: 1
• Connector type (front): HDMI Type A Female
• Connector type (rear): HDMI Type A Female
• Mounting type: Snap-in / Clip-in
• Compatibility: Hager tehalit Skirting Board Systems (BRN, BRS, SL)
• Colour: Pure White (RAL 9010)
• Material: Halogen-free Thermoplastic
• HDMI standard support: High Speed HDMI
• Protection class: IP20
• Operating temperature: -5°C to +45°C
• Storage temperature: -25°C to +60°C
• Halogen-free: Yes
• Module size: 45x45 mm
• Installation depth: 30 mm

Tips

Check the exact profile of your skirting board channel before ordering; this insert is designed for Hager tehalit systems and may not fit third-party channels. For best signal integrity, pair with a certified High Speed HDMI cable.
