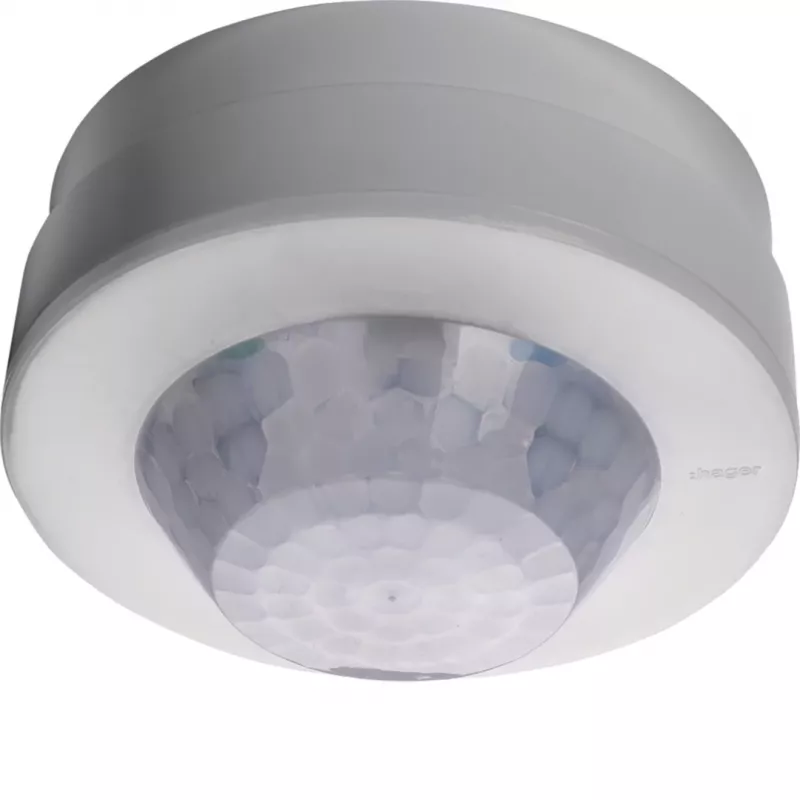

Hager EER513 360° Surface-Mount PIR Motion Detector, 20 m Range, IP55, White

Lighting control in large rooms, corridors, or outdoor covered areas often wastes energy when lights stay on unnecessarily. The Hager EER513 presence and motion detector solves this by automatically switching lights based on movement and ambient light level.

Who is it for

Electricians and building managers who need reliable, wide-area motion detection for lighting automation in commercial or residential settings. It is suitable for surface mounting on ceilings or walls.

Main features

• 360° detection angle for complete coverage
• 20 m detection diameter at recommended 2.5 m mounting height
• Passive infrared (PIR) sensor technology
• Adjustable time delay from 10 seconds to 30 minutes
• Twilight switch adjustable from 5 to 2000 lux
• High switching capacity: 2300 W incandescent/halogen, 600 W LED
• IP55 protection for dusty or damp environments
• White (RAL 9010) housing

Specifications

• Detection angle: 360°
• Mounting type: Surface-mounted
• Detection range: 20 m diameter
• Recommended installation height: 2.5 m
• Switching contact: 1x N/O (normally open)
• Operating voltage: 230 V AC, 50/60 Hz
• Max. switching capacity incandescent/halogen: 2300 W
• Max. switching capacity LED: 600 W
• Protection class: IP55
• Adjustable time delay: 10 s to 30 min
• Adjustable twilight switch: 5 to 2000 lx
• Sensor type: Passive infrared (PIR)
• Colour: White (RAL 9010)
• Diameter: 105 mm
• Height: 65 mm
• Power consumption standby: 0.5 W
• Operating temperature: -20°C to +50°C

Tips

For best coverage, install at 2.5 m height in an open area away from direct airflow or heat sources that may cause false triggers.
