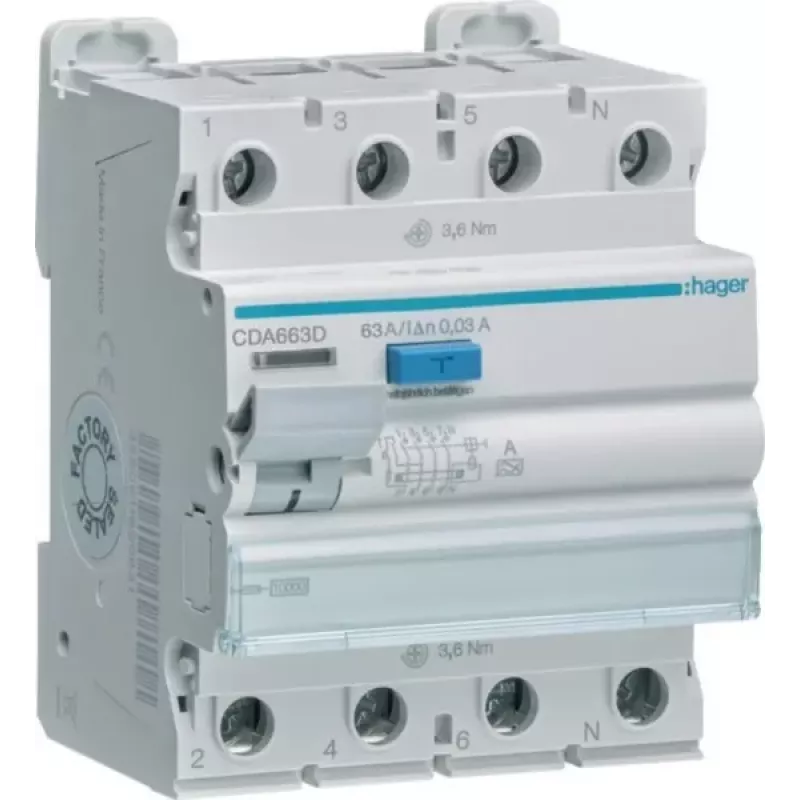

HAGER CDA663D διακόπτης προστασίας διαρροής 4P 63A 30mA Type A 10kA

Electrical installations require reliable protection against earth leakage currents to prevent electric shock and fire hazards. The HAGER CDA663D residual current circuit breaker (RCCB) detects residual currents up to 30 mA and disconnects the circuit instantly, safeguarding people and equipment in residential and commercial buildings.

Who is it for

Electricians and panel builders who need a robust, DIN-rail mountable RCCB for three-phase systems. It suits distribution boards in homes, offices, and industrial facilities where Type A protection is required for circuits with electronic loads.

Main features

• 4-pole design for three-phase networks
• Rated current 63 A, residual operating current 30 mA
• Type A tripping for alternating and pulsating direct residual currents
• Short-circuit breaking capacity 10 kA
• Test button for regular function checks

Specifications

• Number of poles: 4P
• Rated current: 63 A
• Rated residual operating current: 30 mA
• RCD type: A
• Rated short-circuit breaking capacity: 10 kA
• Rated voltage: 230/400 V AC
• Frequency: 50/60 Hz
• Mounting: DIN rail
• Terminal capacity rigid: 1 - 35 mm²
• Terminal capacity flexible: 1 - 25 mm²
• Operating temperature: -25 to 40 °C
• Electrical endurance: 10,000 cycles
• Mechanical endurance: 20,000 cycles

Tips

Press the test button monthly to ensure the RCCB trips correctly. For circuits with DC residual currents, consider a Type B device.
