Hager Ακροδέκτης 2+3-πολικός KZN023 για ράγα συλλογής

For safe insulation and touch protection on Hager busbars, the KZN023 end cap clips onto 2-pole and 3-pole configurations with 10 mm² cross-section.

Overview

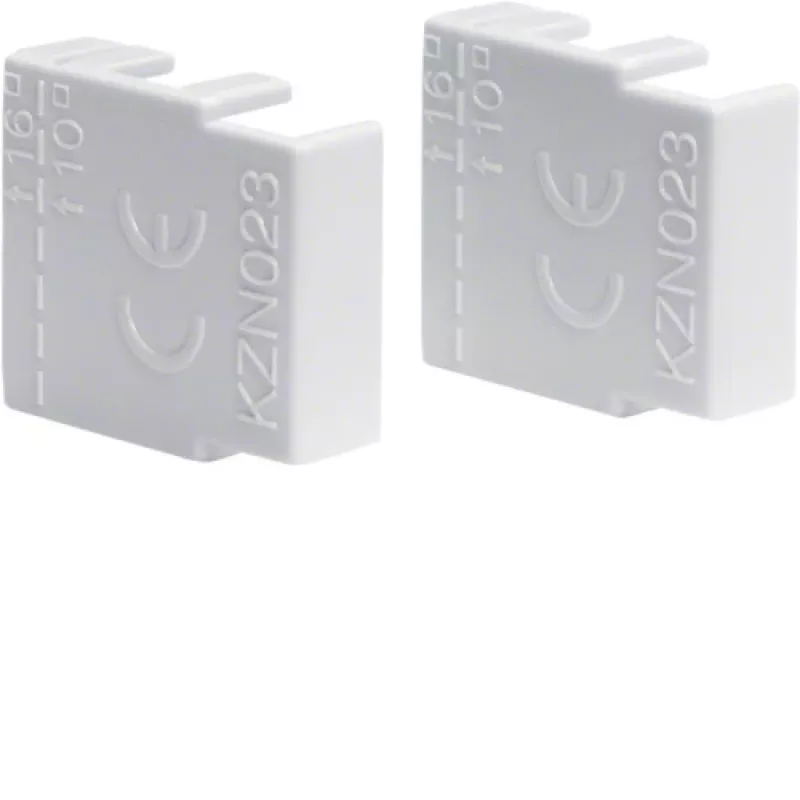

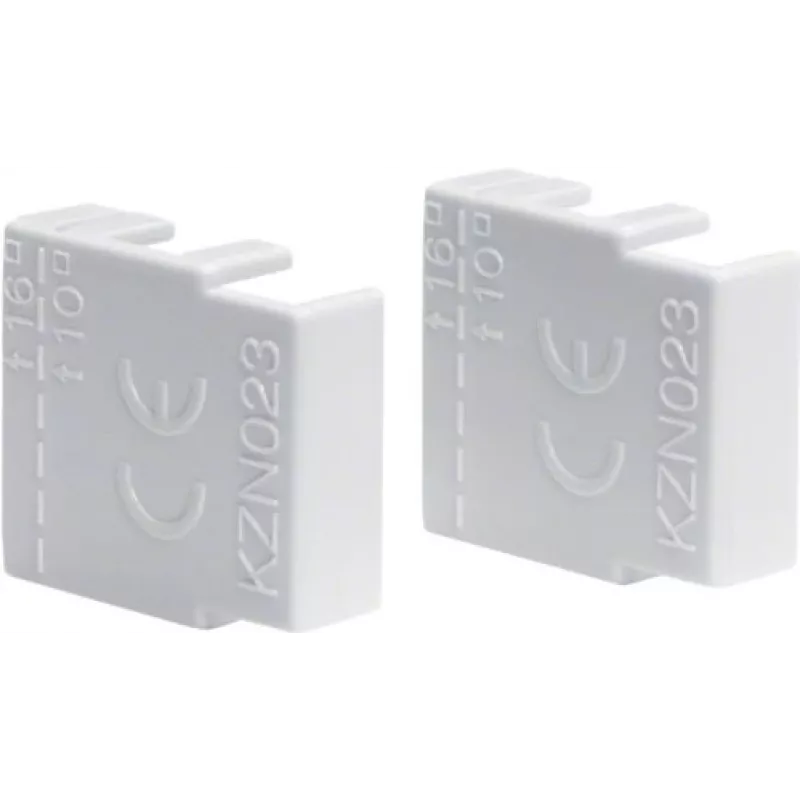

The Hager KZN023 is a grey plastic end cap designed to cover exposed busbar ends in electrical distribution boards and circuit breaker systems. It provides reliable insulation and prevents accidental contact.

What stands out

• Compatible with 2-pole and 3-pole busbars
• Halogen-free plastic construction
• Clip-on mounting for quick installation
• Supplied in packs of 10

Technical details

• Product type: End Cap
• Material: Plastic
• Colour: Grey
• Busbar cross-section: 10 mm²
• Mounting type: Clip-on
• Halogen-free: Yes
• Operating temperature: -25 to +70 °C
• Storage temperature: -40 to +80 °C
• Degree of protection: IP20 (when installed)
• Standard compliance: VDE

Our verdict

A simple, effective solution for insulating busbar ends in Hager distribution systems.
