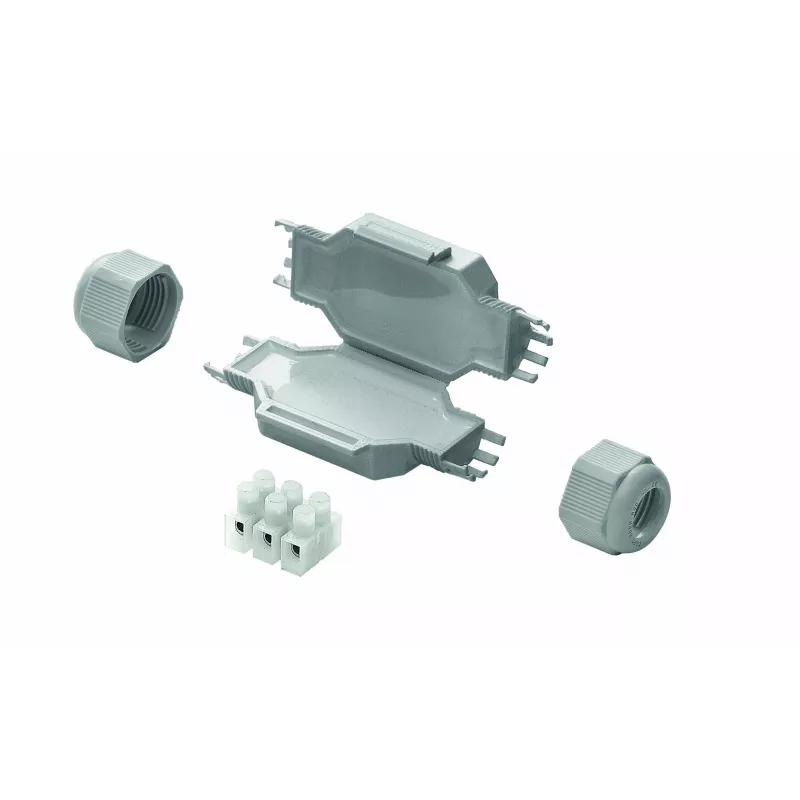

Grothe Micro σύνδεσμος καλωδίων έως 3x2,5mm² FRED (84005)

Micro connection sleeve for low voltage cable splicing, providing a secure 3-pole connection for conductors up to 2.5 mm². Its silicone gel filling ensures IP68 protection against moisture and dust, making it ideal for demanding environments.

Advantages

Reliable screw terminal connection with a wide conductor range from 0.5 mm² to 2.5 mm². The halogen-free, UV-resistant polypropylene housing withstands harsh conditions, while the flame-retardant design enhances safety.

Suitable for

• Low voltage cable splicing in outdoor or underground installations
• Applications requiring IP68 protection against water and dust
• Connections with conductor sizes between 0.5 mm² and 2.5 mm²

Key specifications

• Number of poles: 3
• Max. conductor cross-section: 2.5 mm²
• Min. conductor cross-section: 0.5 mm²
• Protection class: IP68
• Filling material: Silicone gel
• Connection method: Screw terminals
• Max. voltage rating: 450 V AC
• Operating temperature range: -20 °C to +90 °C
• Housing material: Polypropylene (PP)
• Housing color: Black
• Halogen-free: Yes
• UV resistance: Yes
• Flame retardant: Yes
• Reusability: No (single-use)
• Outer cable diameter range: 6 - 12 mm

Recommendations

Ideal for electricians and installers needing a compact, weatherproof splice for low voltage cables. The single-use design ensures a permanent, maintenance-free connection.
