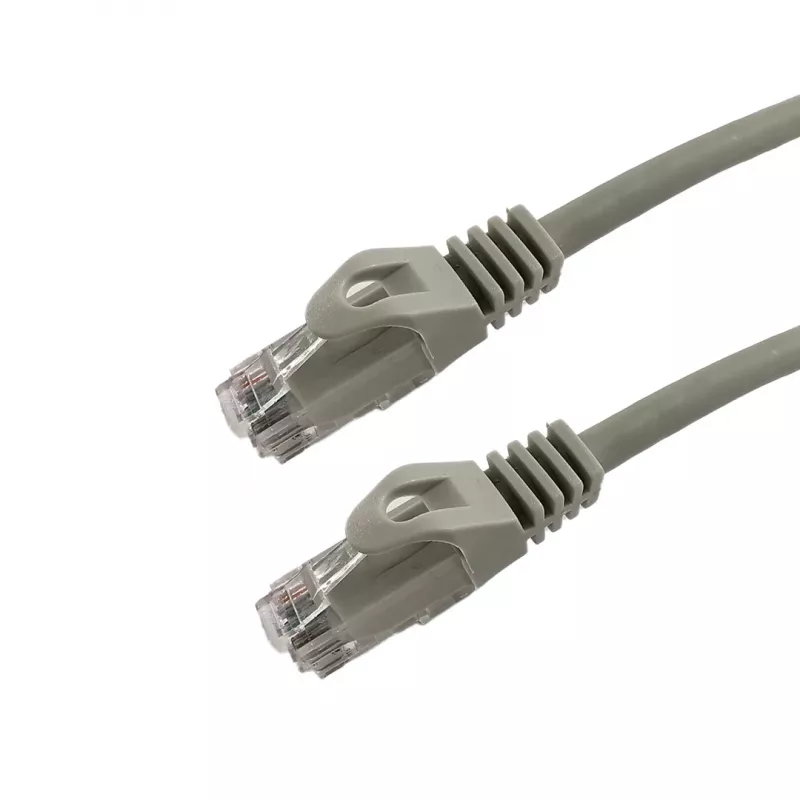

Grafenthal Καλώδιο Patch CAT6A S/FTP CU LSZH 0,15m Γκρι

The Grafenthal Patch Cable CAT6A S/FTP CU LSZH 0.15m Grey is a high-performance Ethernet cable designed for reliable, high-speed network connections in data centers, server rooms, and professional LAN environments. Manufactured with pure copper conductors and S/FTP shielding, this cable ensures excellent signal integrity and protection against electromagnetic interference. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in case of fire, making it suitable for use in public and commercial buildings.

Advantages

This patch cable offers superior data transfer rates up to 10 Gigabit Ethernet (10GBASE-T) with a bandwidth of 500 MHz, ensuring fast and stable network performance. The snagless boot design protects the RJ45 connectors during installation and removal, while the gold-plated contacts provide reliable connectivity and corrosion resistance. The cable is backward compatible with Cat6, Cat5e, and Cat5 networks, offering flexibility for various applications.

Suitable for

• Data centers and server rooms requiring high-speed, reliable connections
• Professional LAN networks and enterprise environments
• PoE (Power over Ethernet) applications such as IP cameras, VoIP phones, and wireless access points
• Installations where fire safety is a priority due to LSZH jacket material

Key specifications

• Cable Type: Patch Cable
• Ethernet Category: CAT6A
• Shielding Type: S/FTP (Screened/Foiled Twisted Pair)
• Conductor Material: Pure Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Length: 0.15 meters
• Color: Grey
• Connector Type: RJ45 Male to RJ45 Male
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: Up to 500 MHz
• Conductor Gauge: 28 AWG
• Connector Plating: Gold-plated contacts
• Boot Type: Snagless
• Wiring Standard: TIA/EIA-568B
• Outer Diameter: Approx. 6.0 mm
• Operating Temperature: -20°C to 60°C
• Fire Safety Standard: IEC 60332-1

Recommendations

For optimal performance, use this cable with CAT6A compatible network equipment. Ensure proper cable management to avoid bending beyond the recommended radius. This cable is ideal for short-distance connections within racks or between adjacent devices.
