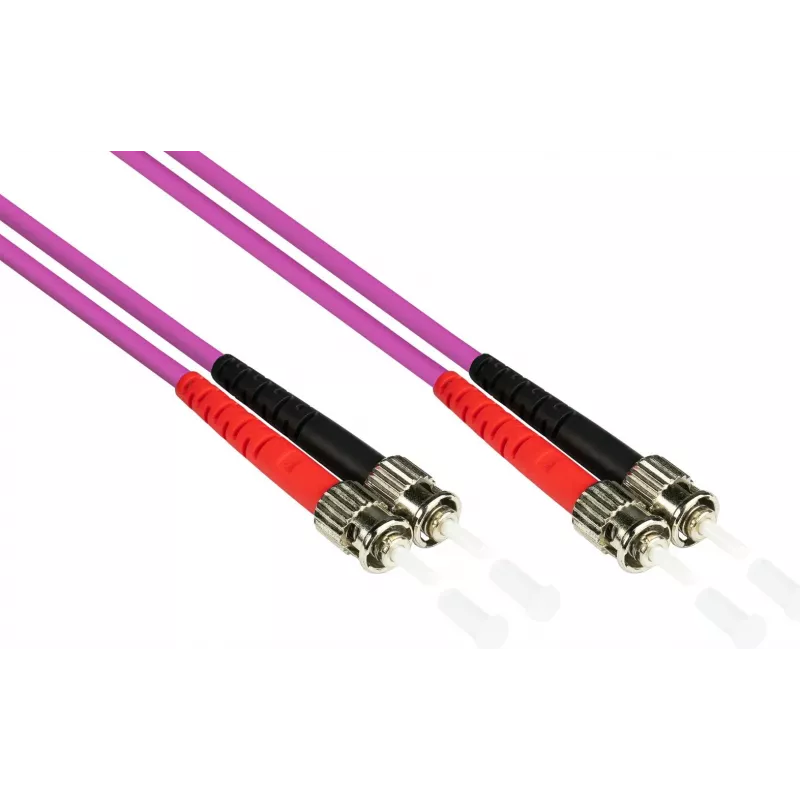

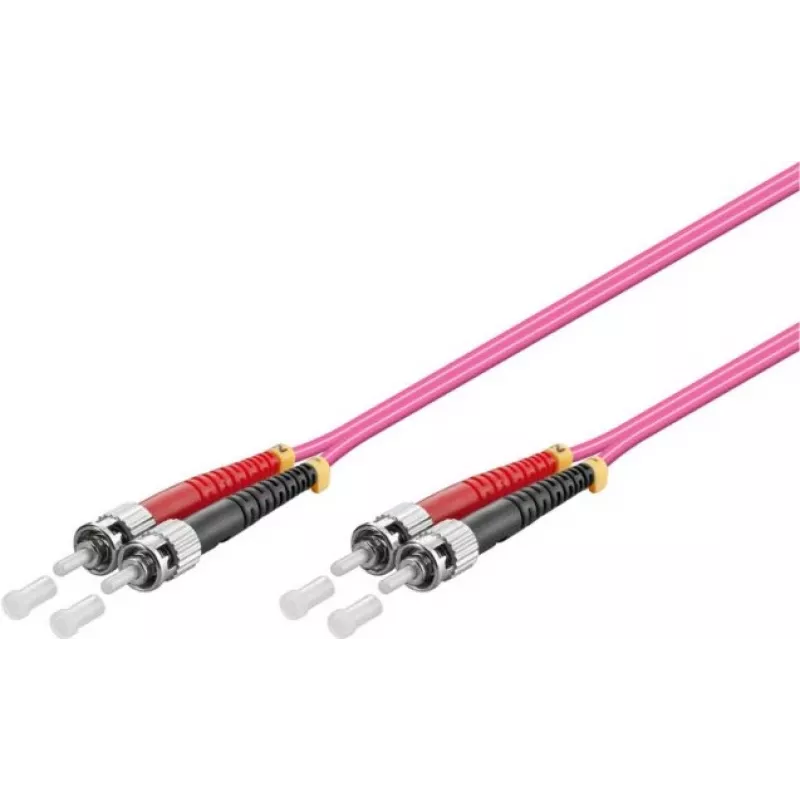

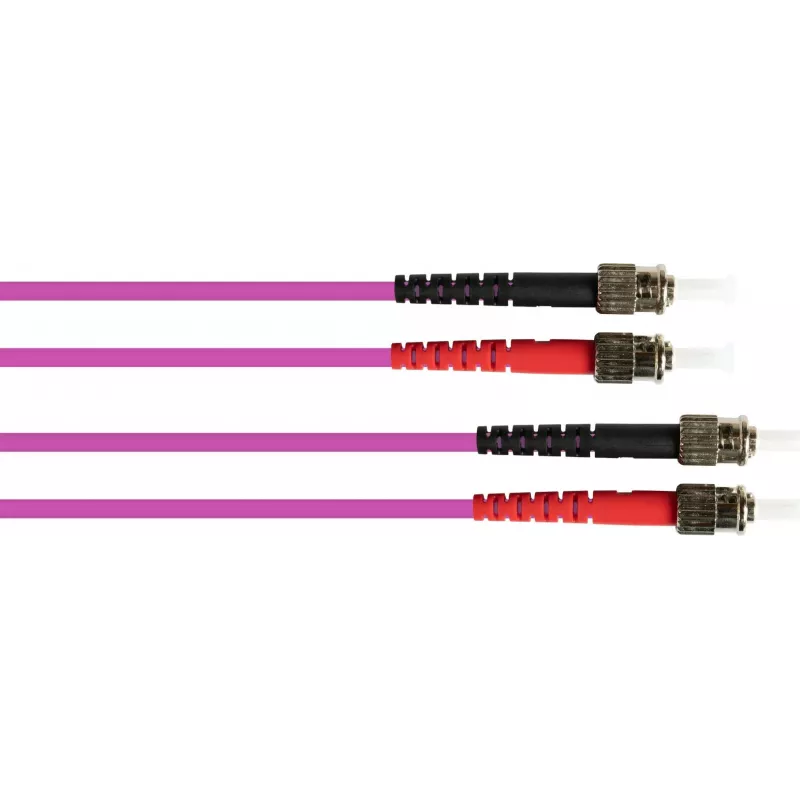

GoodConnections OM4 ST σε ST Multimode Duplex LWL Patch Καλώδιο, 7,5m, LSZH, Βιολετί LW-8075ST4

This OM4 multimode fiber patch cable delivers high-speed 10/40/100 Gigabit Ethernet connectivity over distances up to 150 meters at 850 nm. With ST to ST connectors and a duplex zipcord construction, it provides a reliable, low-loss link for data centers, enterprise networks, and storage area networks.

Advantages

OM4 fiber supports 10GbE, 40GbE, and 100GbE applications, making it ideal for high-density backbone and server connections. The LSZH (Low Smoke Zero Halogen) jacket emits minimal smoke and toxic fumes in case of fire, enhancing safety in enclosed spaces. Violet jacket color allows quick identification of OM4 fiber per industry standards. Duplex zipcord design enables easy separation and routing of individual fibers. Insertion loss is kept to a maximum of 0.3 dB, ensuring signal integrity. The cable operates reliably in temperatures from -20°C to 70°C.

Suitable for

• Data center interconnects and backbone cabling
• 10/40/100 Gigabit Ethernet network upgrades
• Fiber Channel and SAN environments
• Telecommunications rooms and campus networks
• High-density patching where LSZH is required

Key specifications

• Length: 7.5 m
• Fiber type: OM4 multimode, 50/125 µm core/cladding
• Connectors: ST male to ST male
• Jacket: LSZH, violet
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 20 dB
• Attenuation: 2.3 dB/km @ 850 nm, 0.6 dB/km @ 1300 nm
• Operating temperature: -20°C to 70°C
• Compliance: RoHS, REACH

Recommendations

Pair with OM4-compatible transceivers and patch panels for optimal performance. Use bend-insensitive fiber management to maintain signal quality. For high-density environments, consider color-coded cable ties to organize multiple violet OM4 links.
