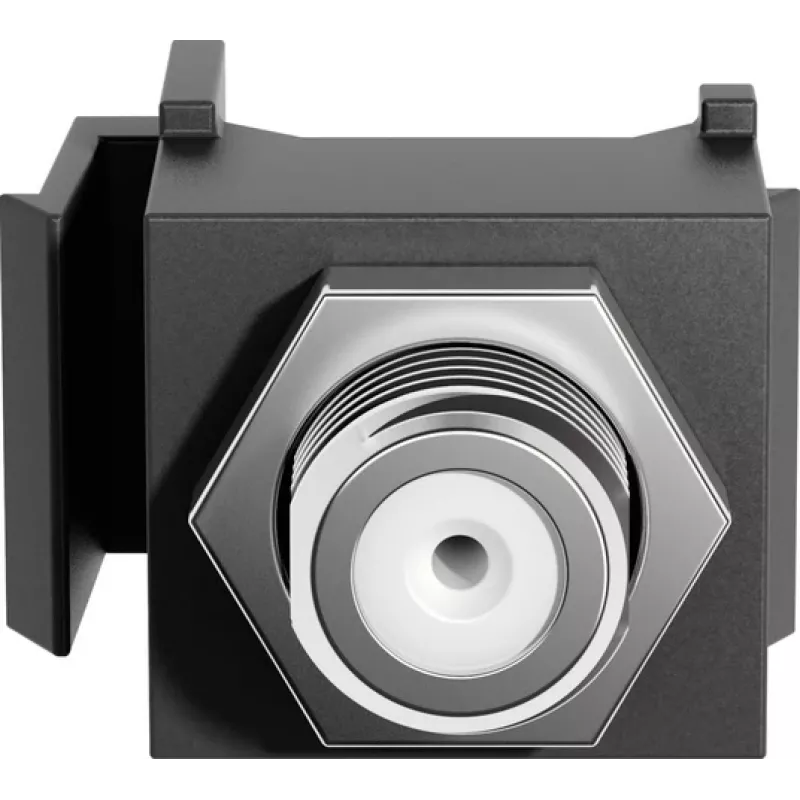

GIRA SAT Υποδοχή θηλυκή F 574700

With a shielding effectiveness exceeding 75 dB across the 5–1000 MHz band, the GIRA SAT F socket 574700 delivers clean satellite signal transfer in flush-mounted installations. This female F-type connector insert is engineered for Gira System 55, E2, Esprit, Event, and F100 ranges, providing a reliable satellite TV connection point with DC pass-through for LNB power supply.

Overview

The GIRA 574700 is a modular F-type connection socket designed for satellite TV distribution. It features a female F-type connector with screw connection, supporting a frequency range of 5 to 2400 MHz and a 75 Ohm impedance. The socket's DC pass-through capability allows it to power an LNB directly through the coaxial cable, simplifying installation.

What stands out

• High shielding effectiveness: >75 dB (5–1000 MHz) and >65 dB (1000–2400 MHz) minimizes interference.
• Wide frequency range 5–2400 MHz covers satellite and terrestrial signals.
• DC pass-through enables LNB power supply without extra wiring.
• Modular insert fits multiple Gira switch ranges for design flexibility.

Technical details

• Connector type: F-type female
• Impedance: 75 Ohm
• Frequency range: 5 - 2400 MHz
• DC pass-through: Yes
• Shielding effectiveness: >75 dB (5-1000 MHz), >65 dB (1000-2400 MHz)
• Mounting type: Modular insert for flush-mounted installations
• Compatibility: Gira System 55, E2, Esprit, Event, F100
• Material: Metal connector body, plastic insulation
• Connection method: F-type screw connection
• Number of connectors: 1

Our verdict

A robust satellite socket insert with excellent shielding and LNB power pass-through, ideal for Gira-based installations requiring reliable SAT connectivity.
