Gira Ρελέ ενεργοποιητής 2 απλός System 3000 540400

Switch two independent 230 V circuits with this flush-mounted relay insert, rated for 10 A resistive loads and up to 400 W of LED lighting per channel.

Overview

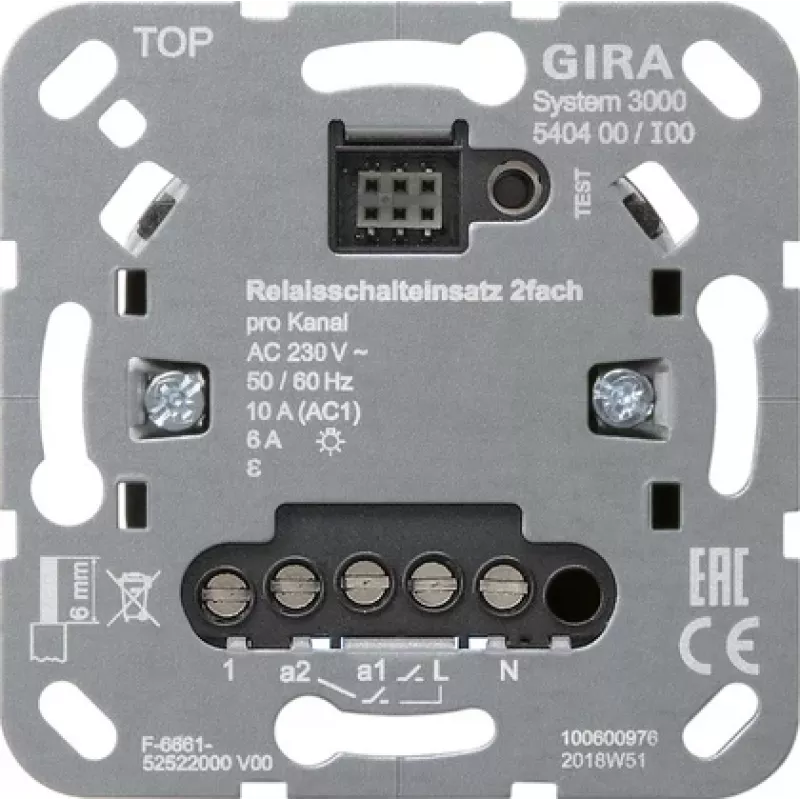

The Gira Relay Switching Insert 2-Gang System 3000 (model 540400) is a dual-channel relay module for the Gira System 3000 platform. It operates at 230 V AC, 50/60 Hz, and uses screw terminals for secure wiring. The insert mounts flush in a standard wall box and is made from halogen-free plastic.

What stands out

• Two independent relay channels in one compact insert
• Handles up to 2300 W resistive load per channel
• Supports LED lamps up to 400 W per channel
• Memory function retains last switching state after power loss
• Standby consumption below 0.5 W

Technical details

• Rated voltage: 230 V AC, 50/60 Hz
• Max. switching current (resistive): 10 A
• Max. switching power (resistive): 2300 W
• Max. switching power (LED lamps): 400 W
• Max. switching power (motors): 1000 VA
• Connection: screw terminals
• Mounting: flush-mounted
• Ambient operating temperature: -5 to +45 °C
• Material: halogen-free plastic

Our verdict

A reliable dual-channel relay insert for System 3000 installations, with solid LED compatibility and low standby power.
