Gira πρίζα κεραίας διέλευσης/τερματική 004100 (004100)

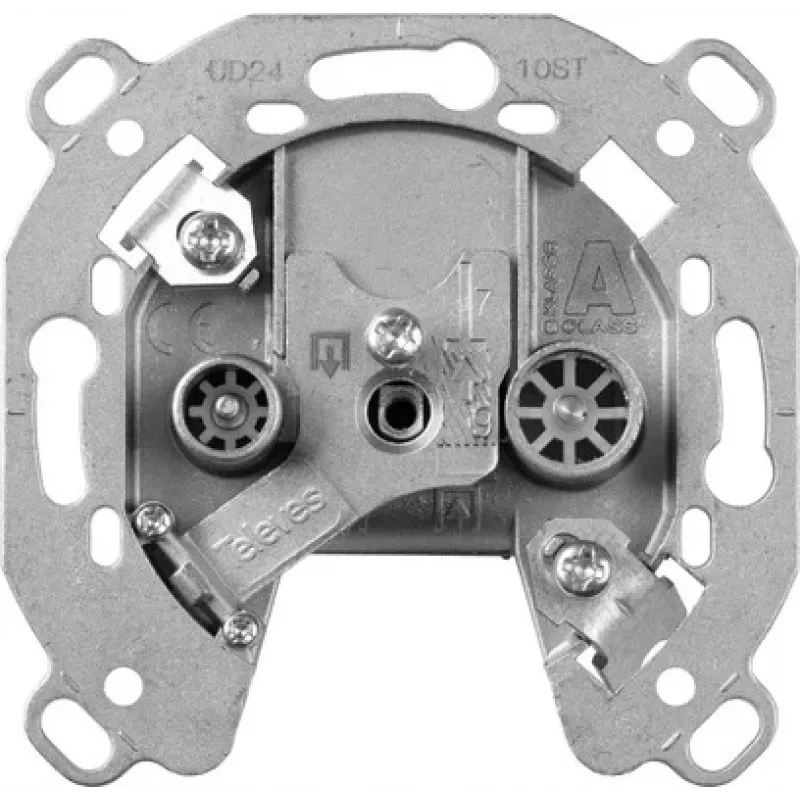

Antenna socket for flush-mounted installation with three outputs: TV, radio, and SAT. The through/end socket enables signal distribution in antenna systems and supports DC passage for LNB power supply. It is compatible with Gira System 55, E2, Event, and Esprit cover frames.

Advantages

Three separate outputs for TV, radio, and satellite signals. Through/end configuration allows flexible integration into antenna distribution networks. DC passage supports remote-powered LNBs. Shielding class A ensures excellent signal quality.

Suitable for

• Connecting TV, radio, and satellite receivers in residential installations
• Flush-mounted installation in standard wall boxes
• Use with Gira switch ranges System 55, E2, Event, and Esprit

Key specifications

• Outputs: TV (IEC male), Radio (IEC female), SAT (F-connector)
• Frequency ranges: TV 5–862 MHz, Radio 87.5–108 MHz, SAT 950–2200 MHz
• Terminal attenuation: approx. 10 dB (all outputs)
• Loop-through attenuation: TV/Radio approx. 1.5 dB, SAT approx. 2.0 dB
• Impedance: 75 Ohm
• Shielding class: A
• DC passage for SAT: Yes
• Mounting type: Flush-mounted

Recommendations

Use with a suitable Gira cover frame to match your interior design. Ensure proper grounding and shielding for optimal signal quality.
