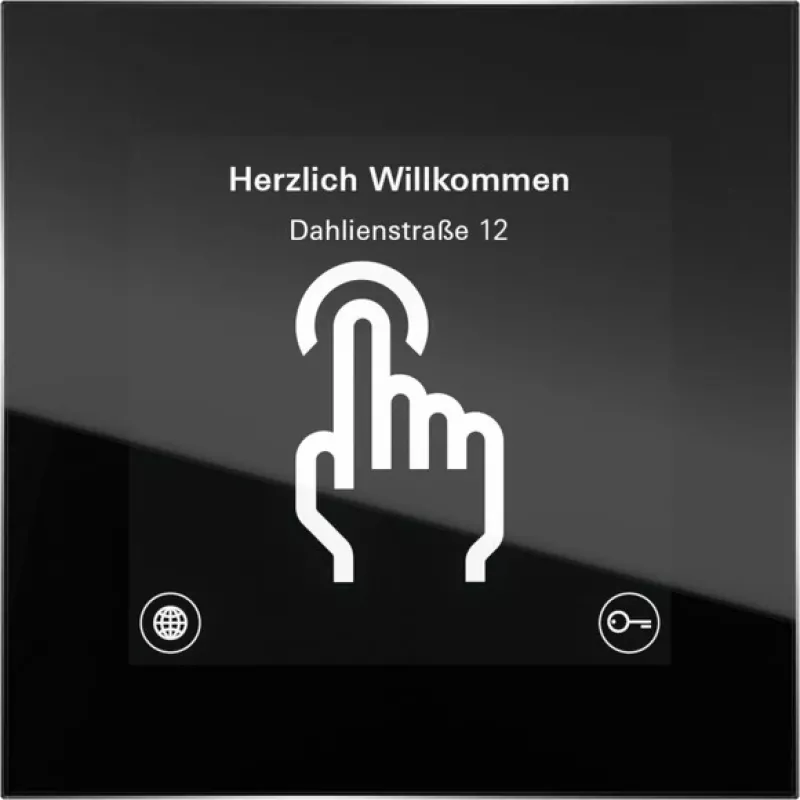

GIRA 5564000 Μονάδα οθόνης κλήσης IP System 106

The GIRA 5564000 Call Display Module is a high-quality flush-mounted device designed for the Gira IP System 106. It features a 2.2-inch TFT color display with 240x320 pixel resolution, providing clear visual feedback for call status, door status, visitor images, text messages, and system messages. The module is powered via Power over Ethernet (PoE) IEEE 802.3af Class 1 or 24 V DC, ensuring flexible installation. With an operating temperature range of 0 °C to +45 °C and IP20 protection, it is suitable for indoor use. The sleek black front panel integrates seamlessly with Gira System 106 frames.

Advantages

Easy flush-mount installation, network-updateable firmware, and low power consumption (max. 2.5 W) make this module an efficient choice for modern IP communication systems.

Suitable for

• Indoor call and door communication in residential and commercial buildings
• Integration with Gira IP System 106
• Display of system messages and visitor images

Key specifications

• Product Type: Call Display Module
• System Compatibility: Gira IP System 106
• Display: 2.2" TFT Color, 240x320 pixels
• Connectivity: Ethernet (RJ45)
• Power Supply: PoE IEEE 802.3af Class 1 or 24 V DC
• Mounting: Flush-mounted (Gira System 106 frames)
• Operating Temperature: 0 °C to +45 °C
• Protection Class: IP20
• Material: High-quality plastic
• Color: Black

Recommendations

For optimal performance, ensure your network supports PoE (IEEE 802.3af) and use compatible Gira System 106 frames. Firmware updates are recommended via network for enhanced functionality.
