Gira 531100 Αισθητήρας αφής 4 Standard 1-θέσιος KNX

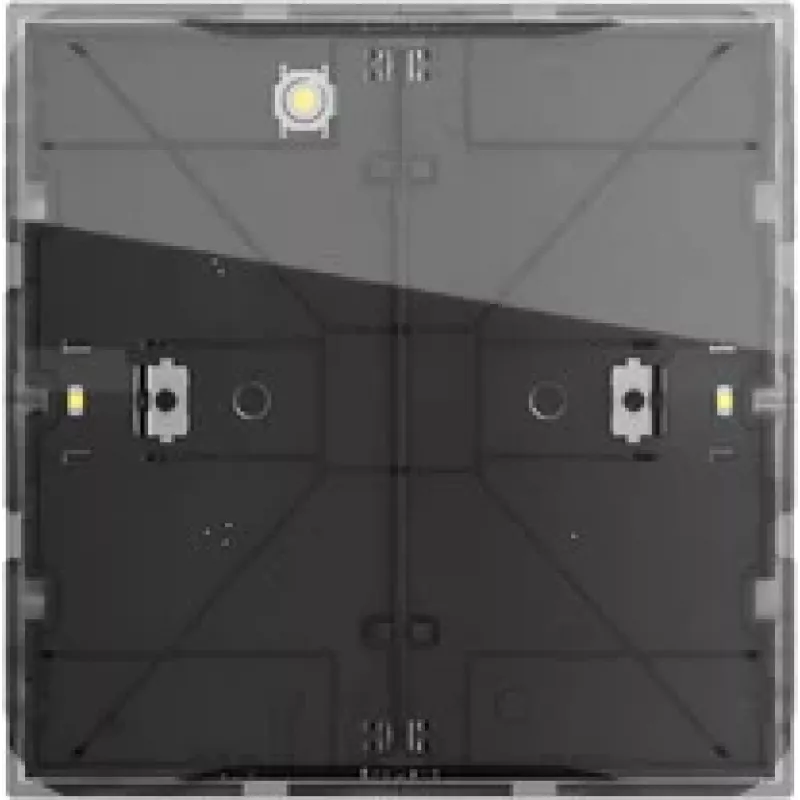

The Gira Pushbutton Sensor 4 Standard 1-gang is a KNX bus device with one operating surface that supports up to two functions per rocker, such as switching, dimming, blind control, value transmitter, scene recall, and step switch. It is designed for flush-mounted installation and is compatible with Gira System 55, E2, Event, Esprit, ClassiX, and F100 design lines when paired with the appropriate rocker and frame.

Advantages

This pushbutton sensor offers flexible control of lighting, blinds, and scenes through the KNX bus. Its compact 1-gang design fits standard flush-mounted boxes, and the two-colour LED indication provides clear status feedback.

Suitable for

• KNX building automation systems
• Control of lighting, blinds, and scenes
• Flush-mounted installation in standard wall boxes

Key specifications

• System: KNX
• Number of operating surfaces: 1
• Functions per rocker: up to 2 (short/long press)
• Supported functions: switching, dimming, blind control, value transmitter, scene recall, step switch
• Mounting type: flush-mounted
• Operating voltage: KNX bus voltage (21-30 V DC)
• Status indication: 1 red programming LED, 1 green status LED
• Protection class: IP20
• Operating temperature: 0 °C to +45 °C
• Material: thermoplastic
• Colour: neutral (requires specific rocker colour)

Recommendations

For a complete installation, combine with a Gira Tastsensor 4 rocker and a compatible frame from the System 55, E2, Event, Esprit, ClassiX, or F100 range.
