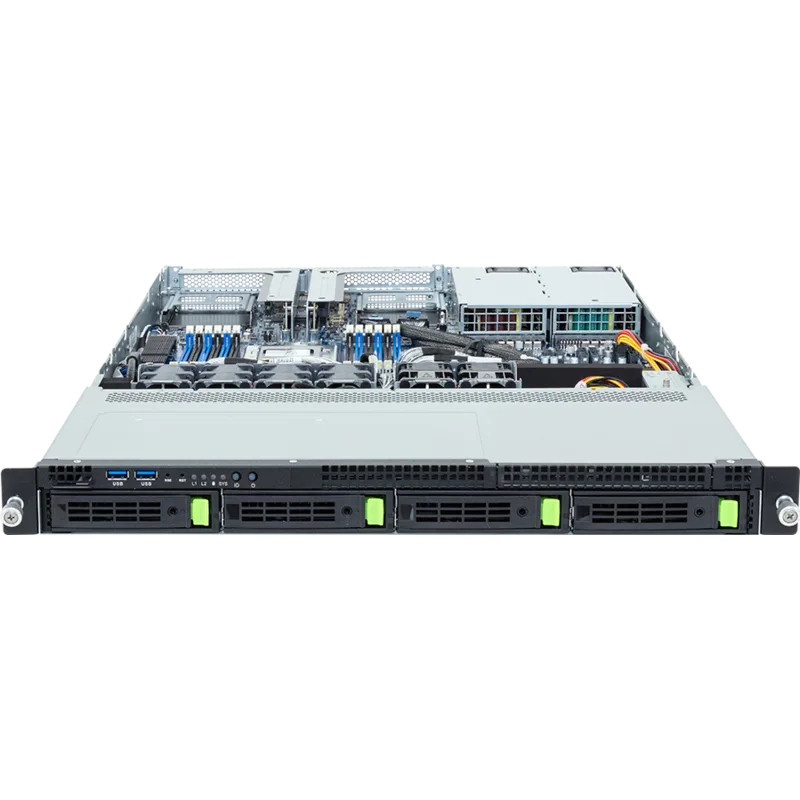

Gigabyte Barebone R143-E30-AAG1 - Server-Barebone - AMD EPYC

Data centers and edge deployments demand a server foundation that balances density, efficiency, and expansion headroom. The Gigabyte R143-E30-AAG1 barebone answers that call: a 1U rackmount chassis engineered around AMD EPYC 7002/7003 processors, delivering up to 64 cores of compute in a space-saving footprint. Without CPU, memory, storage, or OS, it gives system integrators and IT teams the freedom to build precisely the machine their workloads require.

Who is it for

This barebone is ideal for SMBs, hosting providers, and enterprises running virtualized environments, web servers, network appliances, or high-performance edge computing. It suits professionals who prefer to source their own AMD EPYC CPU, DDR4 ECC memory, and drives to control cost and compatibility.

Main features

• Single Socket SP3 (LGA 4094) supports AMD EPYC 7002 and 7003 series processors.
• 8 x DDR4 DIMM slots for ECC RDIMM/LRDIMM, up to 2TB capacity at 3200MHz.
• 4 x 3.5"/2.5" hot-swap SATA/SAS drive bays (SAS requires HBA) plus 2 internal 2.5" SATA bays.
• Dual M.2 slots (PCIe Gen4 x4, 2280/22110) for fast NVMe boot drives.
• Networking: 2 x 1GbE LAN (Intel I210AT) and 1 x dedicated management LAN.
• Expansion: 1 x PCIe Gen4 x16 low-profile slot for additional cards.
• 450W 80 PLUS Platinum redundant (1+1) power supplies for high availability.
• ASPEED AST2500 BMC with IPMI 2.0 for remote management.

Specifications

• Form factor: 1U rackmount
• Processor socket: Single SP3 (LGA 4094)
• Chipset: AMD EPYC SoC
• Memory: 8 x DDR4 DIMM, max 2TB, 3200MHz
• Drive bays: 4 hot-swap 3.5"/2.5" SATA/SAS + 2 internal 2.5" SATA
• M.2: 2 x PCIe Gen4 x4 (2280/22110)
• LAN: 2 x 1GbE (Intel I210AT), 1 x management LAN
• PCIe: 1 x Gen4 x16 low-profile
• PSU: 450W 80 PLUS Platinum redundant (1+1)
• Management: ASPEED AST2500, IPMI 2.0
• Front I/O: 2 x USB 3.0
• Rear I/O: 2 x USB 3.0, 1 x VGA

Tips

Pair this barebone with an AMD EPYC 7002 or 7003 CPU and ECC RDIMMs for optimal performance. Use the M.2 slots for a fast OS drive and the hot-swap bays for bulk storage. The redundant PSU ensures uptime in critical applications.
