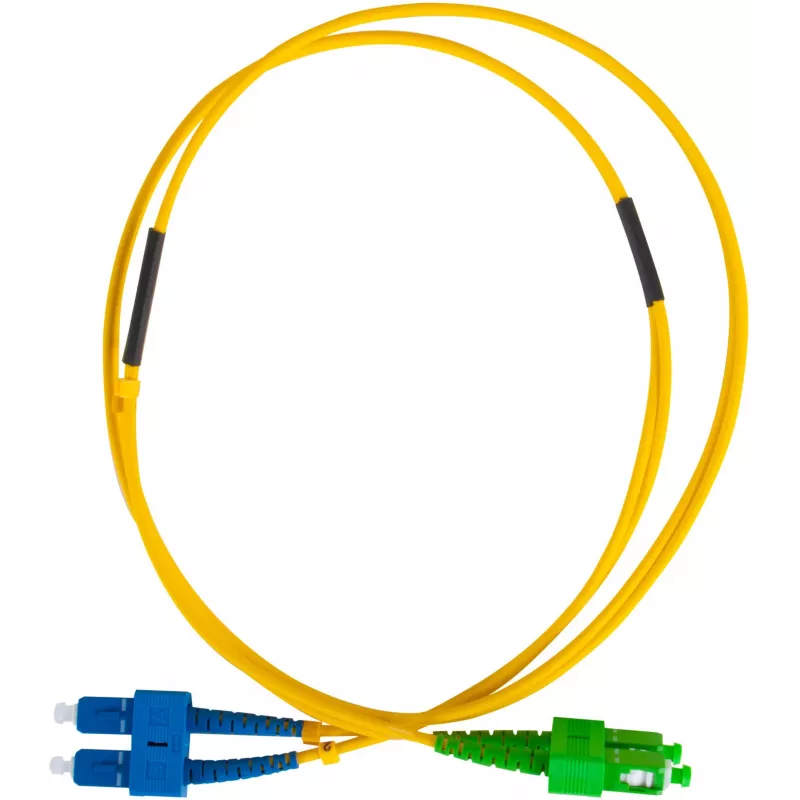

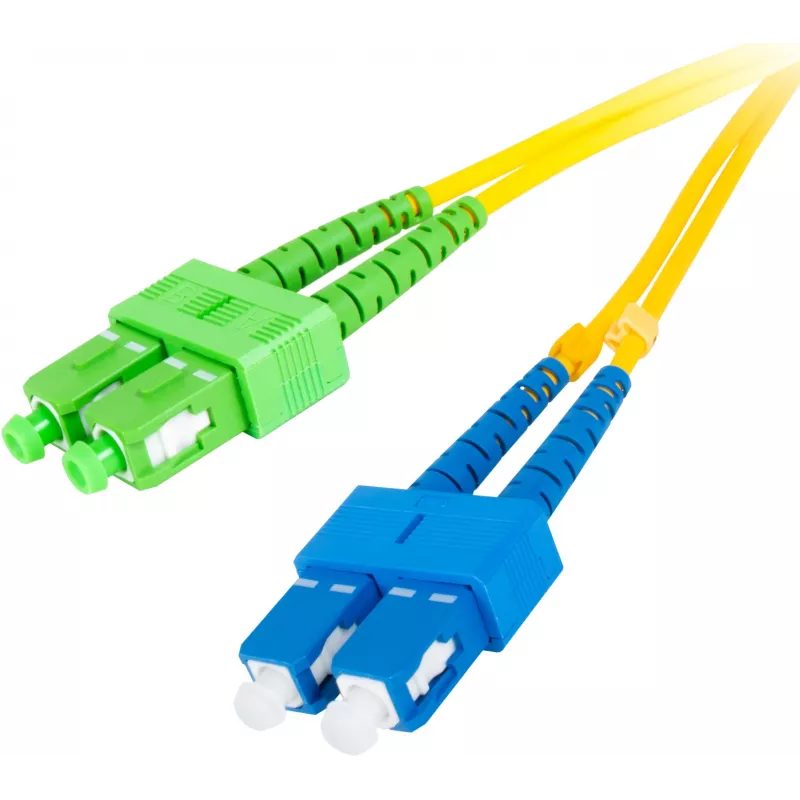

GETFORT Singlemode-Duplex Καλώδιο patch οπτικής ίνας SC/UPC σε SC/APC 2m κίτρινο

Network technicians connecting FTTx or PON equipment will appreciate this GETFORT fiber patch cable. It links an SC/UPC port on an ONT or media converter to an SC/APC port on a splitter or OLT, ensuring a reliable single-mode link. The 2-meter length is ideal for patching within a rack or between adjacent devices.

Key specifications

• Fiber type: Single-mode (9/125 µm)
• Connector A: SC/UPC
• Connector B: SC/APC
• Cable length: 2 m
• Jacket material: PVC, yellow
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 50 dB (UPC), ≥ 60 dB (APC)
• Operating temperature: -20°C to +70°C
• Compliance: RoHS, CE

Why choose it

This patch cord combines two polish types in one assembly, eliminating the need for hybrid adapters. The angled APC connector reduces back reflections, crucial for high-power signals, while the UPC end maintains compatibility with standard equipment. The yellow PVC jacket is durable and easily identifiable as single-mode.

Ideal use cases

• FTTH/FTTx installations
• PON networks
• Telecom central offices
• Data center interconnects

Good to know

The cable has a 3.0 mm diameter and a minimum bend radius of 30 mm, allowing flexible routing without signal loss. Attenuation is ≤ 0.35 dB/km at 1310 nm and ≤ 0.25 dB/km at 1550 nm. Each connector is protected with a dust cap to keep the ferrule clean during storage.
