GEDORE 2297108 7 R 12 Πολύγωνο-ανοιχτό κλειδί 12 mm

The GEDORE 2297108 7 R 12 is a 12 mm combination spanner that stands out with its UD profile ring end and 15° offset angles on both ends, delivering reliable torque transfer and access in tight spaces. Forged from GEDORE vanadium steel 31CrV3 and chrome-plated, it offers a durable, corrosion-resistant finish with a matt open end and polished ring end.

Highlights

• 12 mm size for common fasteners
• UD profile ring end for secure grip and reduced fastener rounding

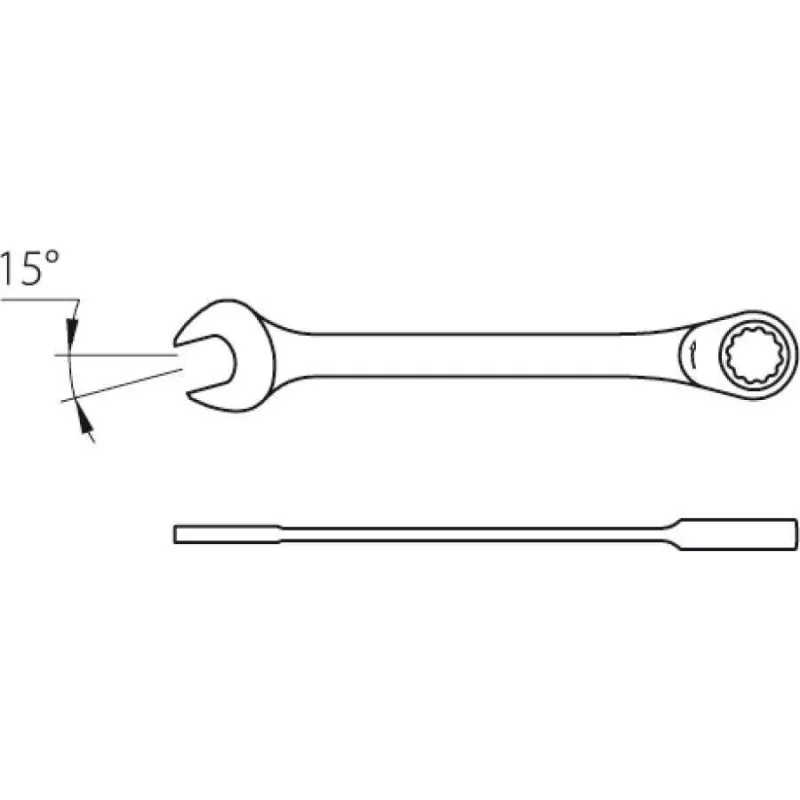

• 15° offset on ring and open ends for improved clearance
• Chrome-plated finish with matt open end and polished ring end
• Complies with DIN 3113 Form A, ISO 3318, and ISO 7738

In daily use

This spanner is suited for general purpose, automotive, and industrial applications. The 170 mm overall length provides good leverage, while the head widths of 18.5 mm (ring) and 26 mm (open) and head thicknesses of 8 mm (ring) and 5.5 mm (open) allow access to recessed fasteners.

Full specifications

• Brand: GEDORE
• Model: 2297108
• MPN: 2297108
• EAN: 4010886889176
• Product type: Combination Spanner
• Size: 12 mm
• Material: GEDORE Vanadium Steel 31CrV3
• Finish: Chrome-plated, matt finish (open end), polished (ring end)
• Ring side profile: UD profile (Unit Drive)
• Ring side offset angle: 15°
• Open end angle: 15°
• Standard compliance: DIN 3113 Form A, ISO 3318, ISO 7738
• Head type: Ring and Open End
• Drive type: Manual
• Application: General purpose, automotive, industrial
• Overall length: 170 mm
• Head width ring side (d1): 18.5 mm
• Head width open end (d2): 26 mm
• Head thickness ring side (a1): 8 mm
• Head thickness open end (a2): 5.5 mm
• Series: 7 R

Final note

A professional-grade 12 mm combination spanner from GEDORE's 7 R series, built for durability and precise fit.
