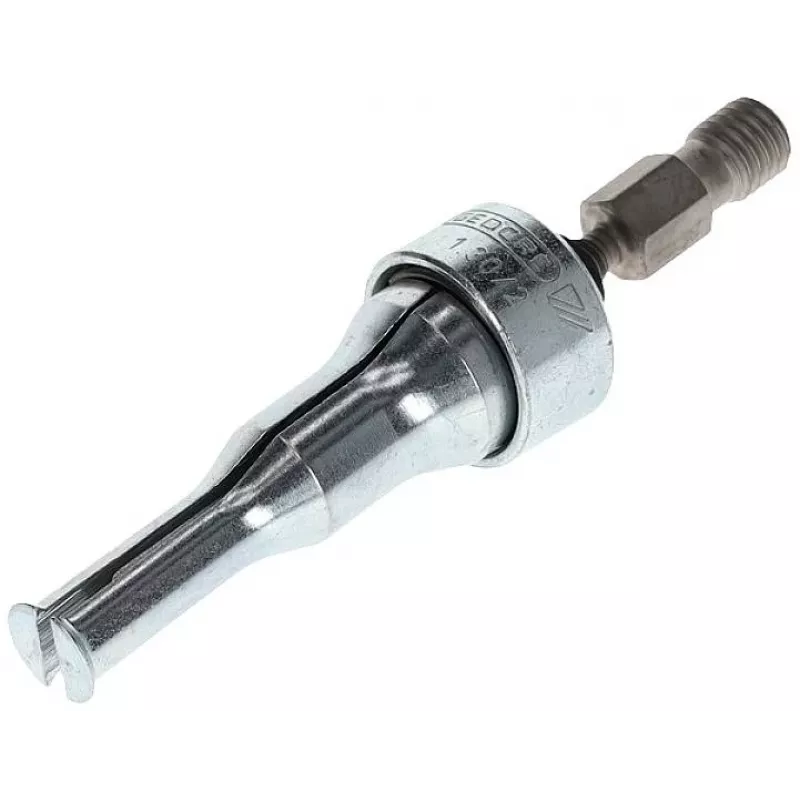

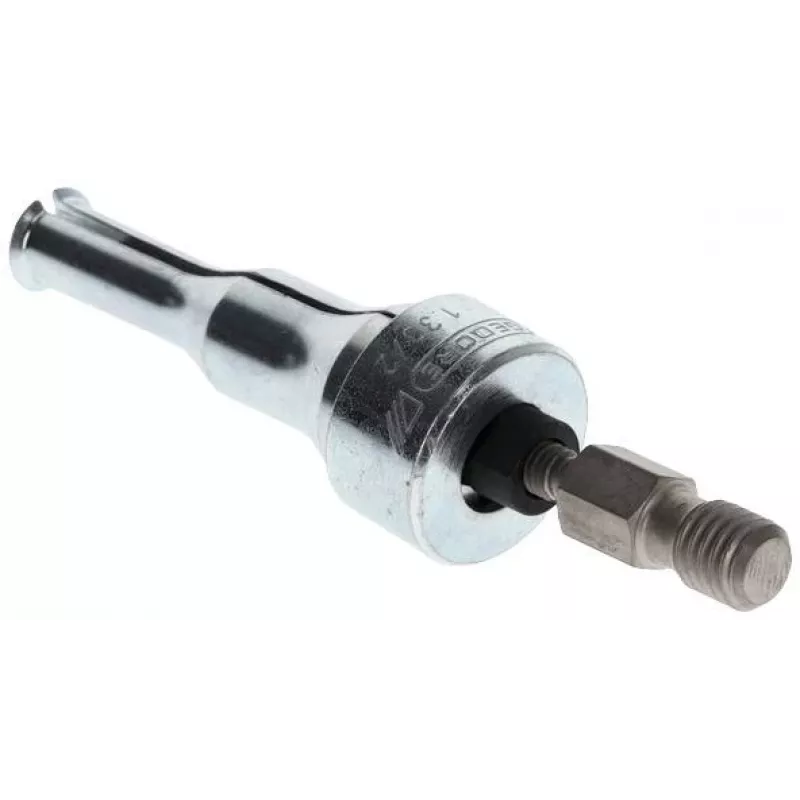

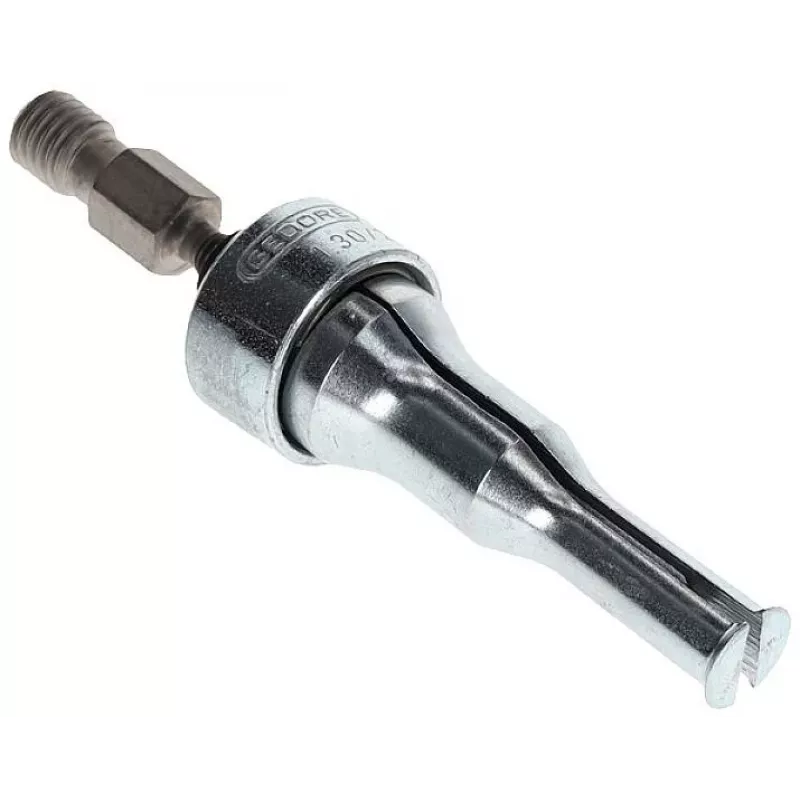

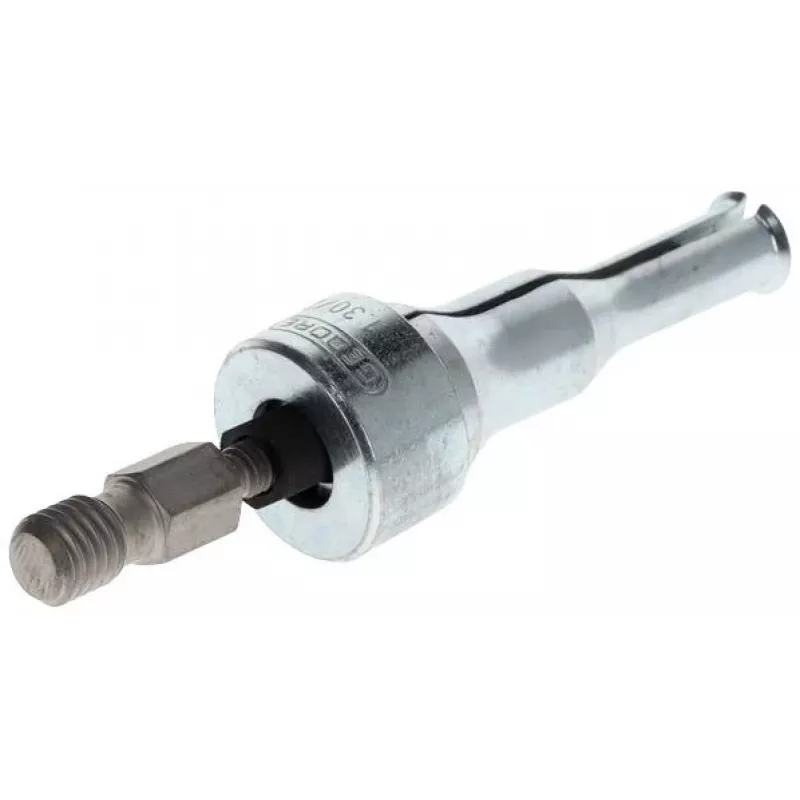

GEDORE 1.30/2 Εξολκέας εσωτερικός 12-15 mm 8012910

The GEDORE 1.30/2 internal extractor is engineered for pulling bearings, bushings, and shaft seals from blind holes where external gripping is impossible. Its two-arm design expands behind the component, providing a secure grip for extraction with a counter support or slide hammer (sold separately).

Highlights

• Working range: 12–15 mm diameter
• Two-arm internal gripping mechanism
• M10 connection thread for compatible accessories
• High-grade steel construction for durability

In daily use

This extractor is used with GEDORE counter supports (series 1.34, 1.36) or slide hammers (series 1.35/1, 1.35/2, 1.35/3) to remove components from blind holes. The M10 thread ensures a solid connection, and the two-arm design distributes pulling force evenly to prevent damage.

Full specifications

• Extractor type: Internal extractor
• Working diameter range: 12–15 mm
• Application: Blind hole bearings, bushings, shaft seals
• Required accessory: Counter support or slide hammer (sold separately)
• Compatible counter supports: GEDORE 1.34, 1.36 series
• Compatible slide hammers: GEDORE 1.35/1, 1.35/2, 1.35/3 series
• Connection thread: M10
• Design: Two-arm
• Material: High-grade steel
• Tool series: 1.30

Final note

A precise tool for blind-hole extraction tasks, built to GEDORE's professional standards.
