GACIA N8BH 10kA C 3P 63A Μικροαυτόματος Διακόπτης (MCB)

The GACIA N8BH is a high-performance miniature circuit breaker (MCB) designed for reliable overcurrent protection in residential, commercial, and industrial electrical installations. With a rated current of 63 A and a breaking capacity of 10 kA, this three-pole C-curve MCB ensures safe and efficient operation.

Advantages

This MCB offers robust protection against overloads and short circuits, featuring a thermal-magnetic release mechanism. Its compact design allows for easy installation on standard 35 mm DIN rails, saving space in distribution boards. The C-curve tripping characteristic is ideal for circuits with moderate inrush currents, such as lighting and general power outlets.

Suitable for

• Residential electrical panels
• Commercial building distribution boards
• Industrial control systems
• Lighting and socket circuits

Key specifications

• Rated Current (In): 63 A
• Number of Poles: 3P (Three-Pole)
• Tripping Curve: C-Curve
• Rated Breaking Capacity (Icn): 10 kA
• Rated Voltage (Ue): 230/400 V AC
• Rated Insulation Voltage (Ui): 500 V
• Rated Impulse Withstand Voltage (Uimp): 6 kV
• Frequency: 50/60 Hz
• Mounting Type: DIN Rail (35 mm)
• Terminal Capacity: Up to 25 mm² (solid/stranded)
• Electrical Endurance: ≥ 10,000 operations
• Mechanical Endurance: ≥ 20,000 operations
• Protection Degree: IP20 (Terminals)
• Standard Compliance: IEC/EN 60898-1
• Energy Limiting Class: Class 3
• Operating Temperature Range: -25°C to +55°C

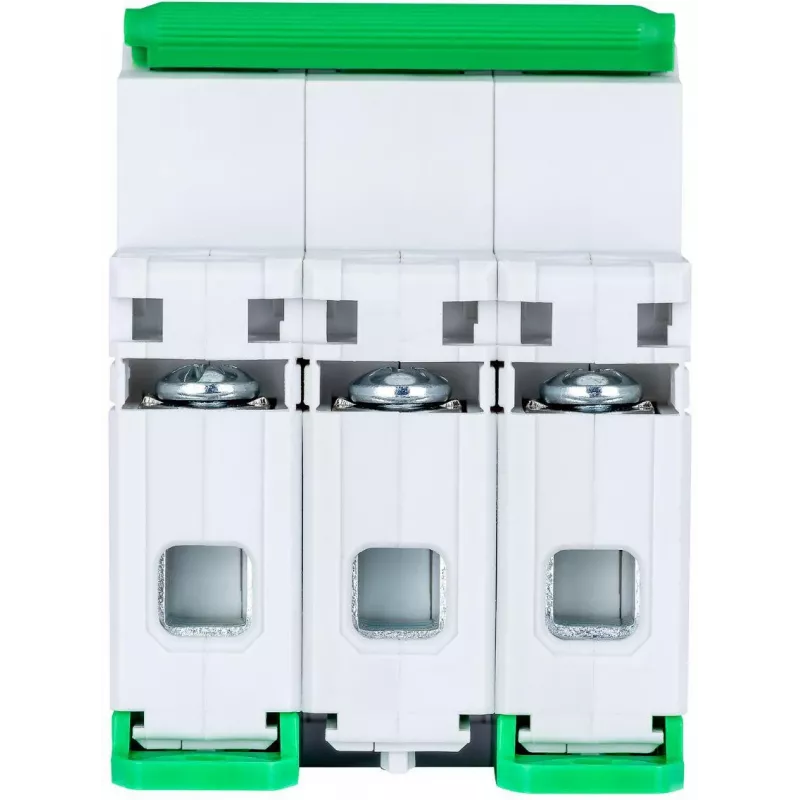

• Connection Type: Screw Terminals
• Short-Circuit Release Type: Thermal-magnetic
• Pollution Degree: 2

Recommendations

For optimal performance, ensure that the MCB is installed by a qualified electrician and that the system complies with local electrical regulations. Regular testing is recommended to maintain safety.
