Φωτοηλεκτρικός αισθητήρας Datalogic S50-PH-5-B01-PP

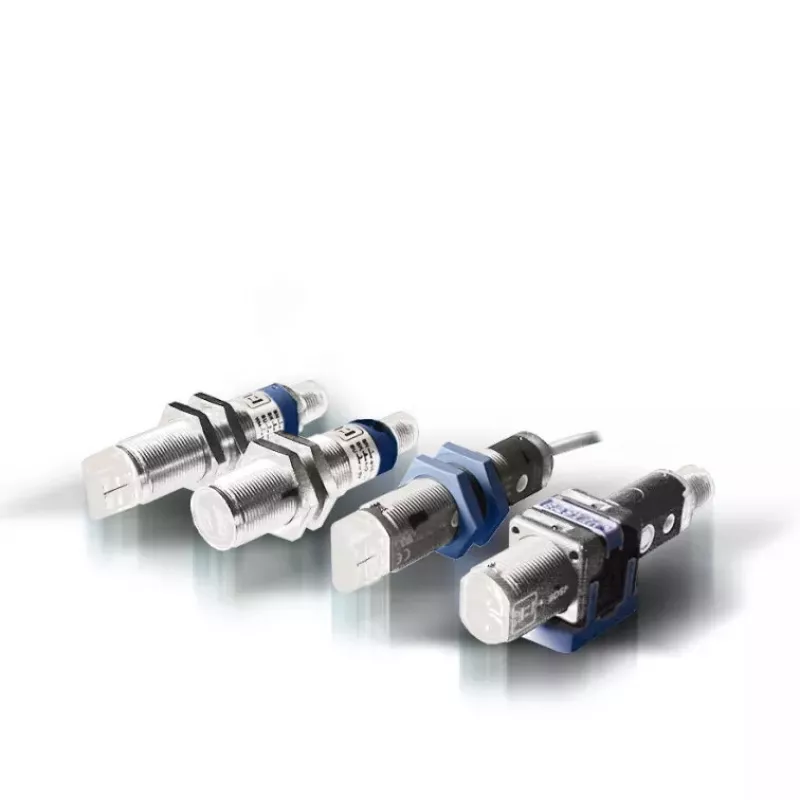

The Datalogic S50-PH-5-B01-PP is a compact plastic photoelectric sensor in the M18 tubular “One for All” housing. It provides standardized dimensions, fixing holes and installation wiring for a range of optical functions. With an IP67 rating, 1 kHz switching frequency and a lightweight 25 g design, this sensor is intended for reliable presence detection and object sensing in industrial and automation applications.

Advantages

The S50 series combines a consistent M18 form factor with options for axial or radial optics and cable or connector terminations, simplifying spare-part handling and installation. The plastic housing version offers corrosion resistance and reduced weight while maintaining IP67 protection for washdown and dusty environments. Standardized mounting and wiring reduce installation time and inventory variety.

Suitable for

• Presence detection on conveyor lines
• Object counting and positioning in automated machinery
• General industrial sensing where compact M18 sensors are required

Key specifications

• Brand: Datalogic
• Model: S50-PH-5-B01-PP (MPN 952001960)
• EAN: 2050004556278
• Housing: M18 tubular, plastic
• Protection class: IP67
• Switching frequency: 1 kHz
• Weight: 25 g

How to use

Mount the sensor using the standardized M18 fixing points and align the axial or radial optical axis to the target area. Connect power and signal following the product wiring scheme for the cable or connector version used. Adjust the sensor position or sensing distance as required for reliable detection; perform initial tests at operating speed (up to the rated 1 kHz) to confirm correct switching behavior.

Recommendations

Use the S50-PH-5-B01-PP in environments compatible with its IP67 rating; avoid exposure to chemicals that may degrade plastic housings. Keep connector and cable terminations protected from mechanical strain and perform routine cleaning when installed in dusty or wet areas to maintain optical performance.
