Φορητός αναγνώστης barcode Datalogic PowerScan PBT9100

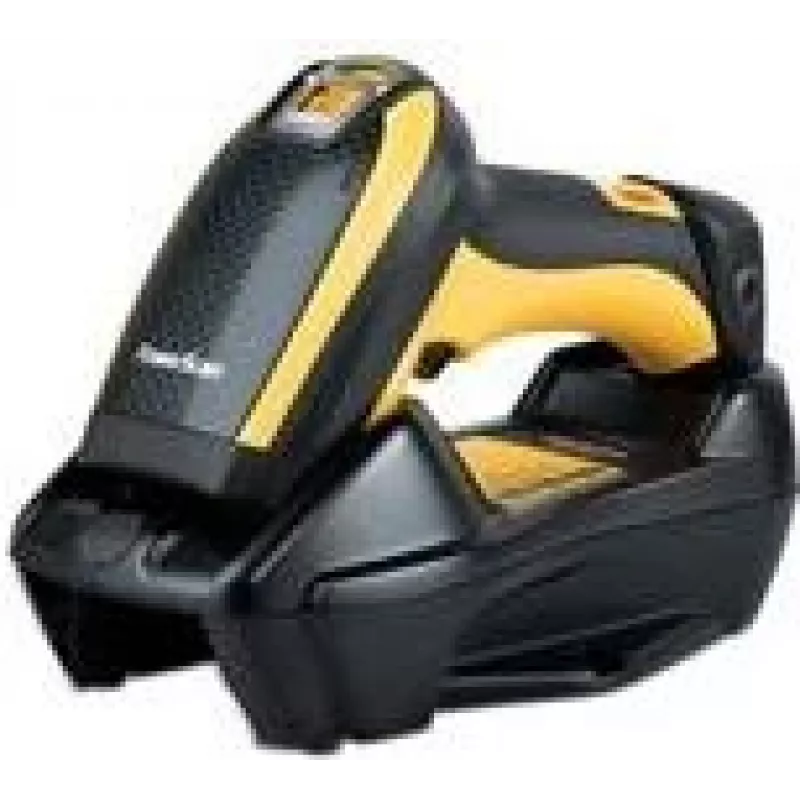

The Datalogic PowerScan PBT9100 is a cordless handheld 1D barcode reader engineered for industrial use. It combines a durable mechanical design with Bluetooth 3.0+HS wireless connectivity and a 2150 mAh Li‑Ion battery, delivering reliable scanning performance in demanding environments. The scanner uses a green scanning line that provides laser-like definition with the advantages of a linear imager and includes Datalogic’s 3 Green Lights (3GL) and Green Spot technology for clear good-read feedback.

Advantages

The PowerScan PBT9100 offers an IP65-rated, shock-resistant enclosure and tested mechanics to withstand extreme conditions while maintaining consistent read performance. Its ergonomic, lightweight form (405 g) and well-balanced design support comfortable use during scan-intensive tasks. Integrated dual Good Read LEDs and the on-code Green Spot improve visibility from different angles. The device supports multiple host interfaces (RS-232, Keyboard Wedge, USB) for flexible integration.

Suitable for

• Warehouse receiving and shipping
• Inventory management and stock counting
• Manufacturing floor tracking and part scanning
• Logistics and distribution centres
• Retail backroom operations

Key specifications

• Scanner type: 1D linear imager
• Sensor type: LED
• Supported 1D codes: Code 128, Plessey, Interleaved 2 of 5, GS1-128 (UCC/EAN-128), GS1 DataBar Omnidirectional, GS1 DataBar Expanded, EAN-13, EAN-5, EAN-2, Code 93, Code 39, Code 32, Code 11, Codabar, UPC
• 2D codes: Not supported
• Wireless: Bluetooth 3.0 + HS, range up to 100 m (open air)
• Battery: 2150 mAh Lithium-Ion
• Interfaces: RS-232, Keyboard Wedge, USB
• Ingress protection: IP65
• Weight: 0.405 kg
• Colours: Black, Yellow

How to use

Charge the 2150 mAh Li‑Ion battery before first use and pair the scanner with the host device via Bluetooth following the manufacturer pairing procedure. Aim the green scanning line at a 1D barcode and press the trigger to initiate a read; the Green Spot and LEDs indicate a successful scan. Use the appropriate interface mode (RS-232, Keyboard Wedge or USB) configured on the host system for data transmission. Refer to the user manual for configuration via Datalogic setup utilities and for programming any required symbology settings.

Recommendations

To preserve read reliability and device life, avoid exposing the scanner to prolonged direct sunlight or extreme temperatures, inspect and clean the scan window regularly, and store the unit in a dry environment when not in use. For optimal wireless performance, maintain a clear line of sight within the rated Bluetooth range and keep firmware updated per Datalogic guidelines.
