Φορητός αναγνώστης barcode Datalogic Heron HD3130

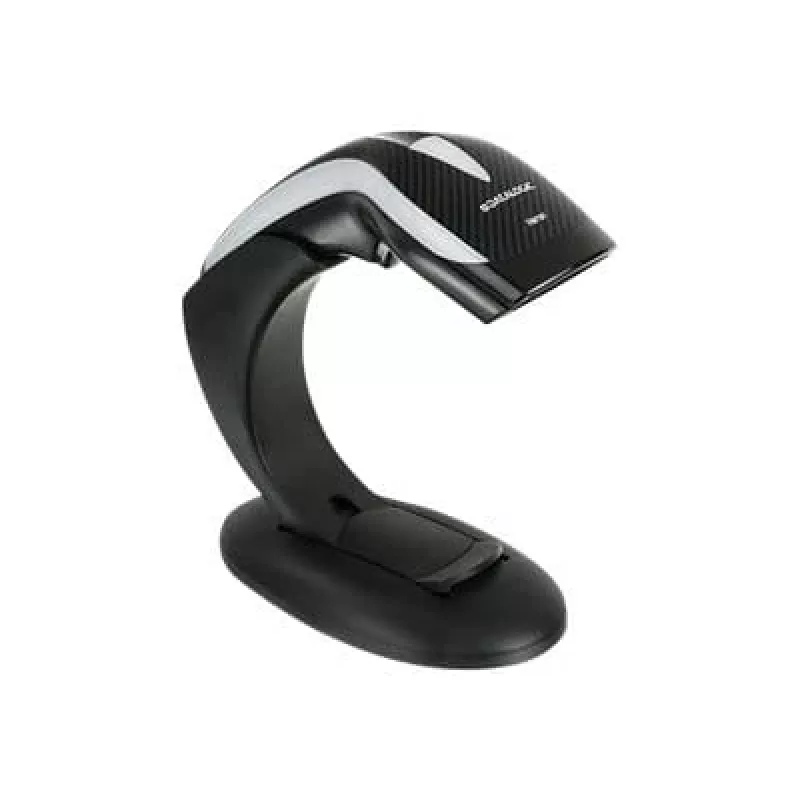

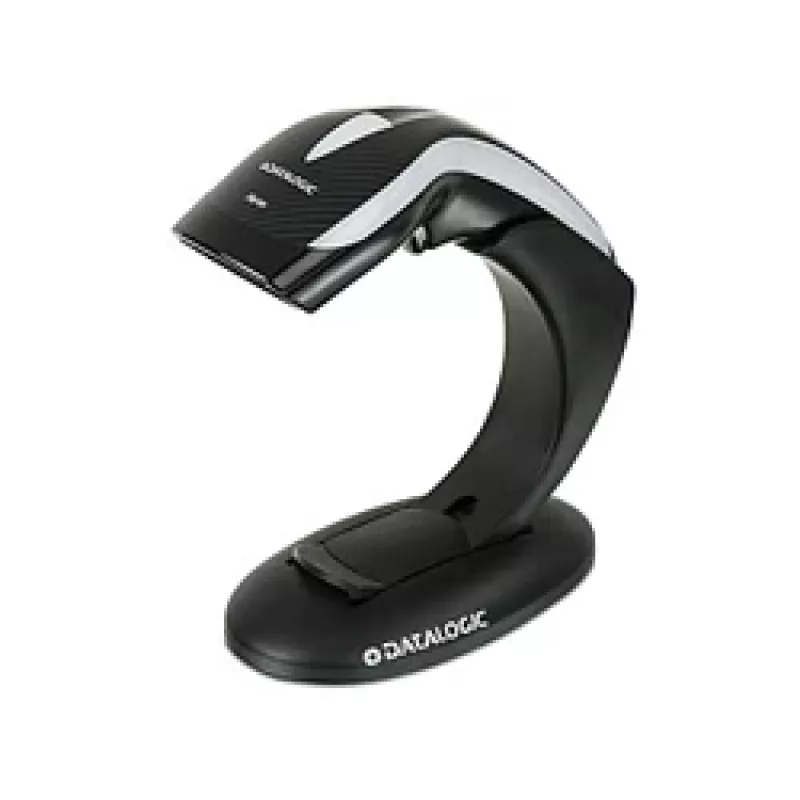

The Datalogic Heron HD3130 is a compact handheld barcode reader designed for reliable 1D scanning at the point of sale. With a lightweight 150 g body, CCD sensor and wired connectivity options such as USB and RS-232, the HD3130 offers consistent reading performance for retail and light industrial environments. The imager includes configurable multi-color LEDs, a polyphonic speaker for audio feedback and Datalogic's patented Green Spot for aiming and good-read confirmation.

Advantages

The Heron HD3130 combines a refined modern appearance with practical features: fast linear (1D) scanning performance, selectable top-cover designs, visible multi-color LEDs and an audio speaker for customizable feedback. Its Green Spot technology provides clear good-read indication and assists aiming in hands-free mode. The lightweight, wired design and IP40 dust/solid-object protection make it suitable for continuous checkout use while keeping integration and maintenance straightforward.

Suitable for

• Retail point-of-sale barcode scanning
• Light warehouse or inventory tasks requiring 1D reads
• Checkout counters with mixed handheld and hands-free operation

Key specifications

• Scanner type: Linear (1D)
• Sensor type: CCD
• Read rate (max): 270 reads/s
• Supported 1D symbologies: GS1-128 (UCC/EAN-128) and other linear codes
• Connectivity: Wired (USB, RS-232)
• Weight: 0.15 kg
• Protection rating: IP40
• Power consumption: 300 mA
• Product colour: Black

How to use

Connect the HD3130 to your POS or host system using the appropriate wired interface (USB or RS-232). For handheld reading, point the scanner at the linear barcode and press the trigger; the Green Spot and LED indicators will confirm a successful read and the speaker can provide additional audio feedback. For hands-free operation place the imager in a compatible stand: the Green Spot remains active to help position codes quickly. Configure top-cover appearance, LED behavior and audio tones through the Datalogic configuration tools as required.

Recommendations

The HD3130 is optimized for 1D barcode environments; avoid attempting to read 2D/matrix codes. For consistent performance, keep the scanner window clean and use the hands-free stand for high-volume checkout lanes. Select wired connectivity appropriate for your POS setup and consider EASEOFCARE service plans for long-term support.
