Φορέας διέλευσης καλωδίων Rittal DK 7072.100

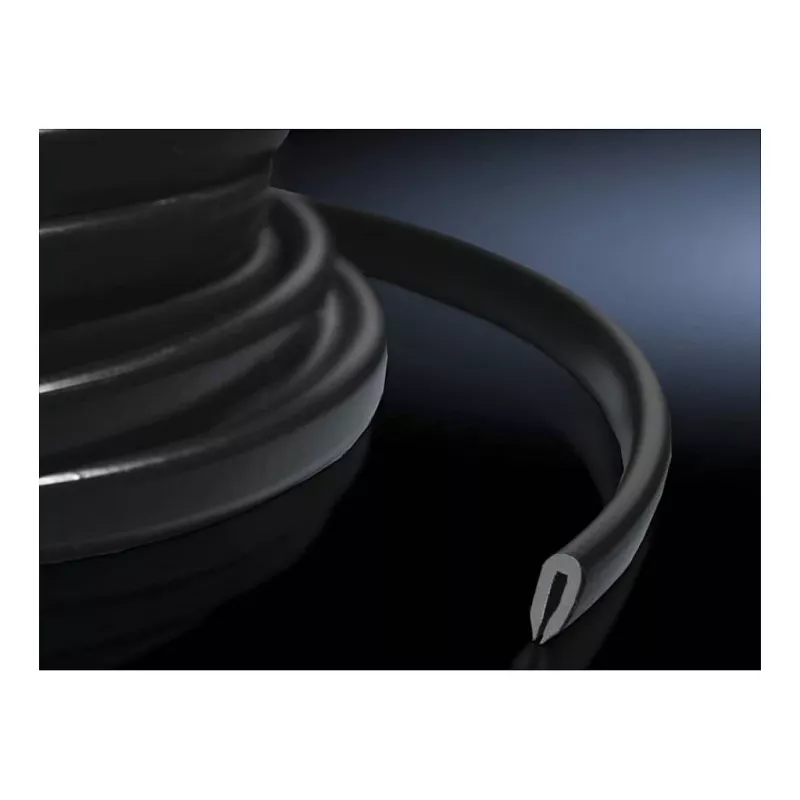

The Rittal DK 7072.100 is a black conduit carrier made of durable PVC designed to cover sharp edges of cut-outs and protect cables passing through openings. It prevents injuries and damage to inserted cables, fits material thicknesses of approximately 1.0–2.0 mm, and can be cut to length for individual installations.

Advantages

Made from resilient PVC, the conduit carrier offers mechanical protection for cables and protects personnel from sharp panel edges. Its black finish provides a neutral appearance for industrial enclosures. Lightweight and simple to install, it can be trimmed to the required length on site.

Suitable for

• Cable protection at metal or plastic panel cut-outs
• Industrial enclosures and control cabinets
• Electrical installations where edge protection is required
• Retrofit or new-build projects requiring cable routing through panels

Key specifications

• Brand: Rittal
• Model / MPN: DK 7072.100 (7072100)
• EAN: 4028177246614
• Material: PVC
• Colour: Black
• Suitable material thickness: approx. 1.0–2.0 mm
• Weight per piece: 520 g
• Pack quantity: 1 piece

How to use

Measure the cut-out edge and, if necessary, trim the conduit carrier to the required length with appropriate cutting tools. Press the carrier into the panel opening so that the edge is fully covered and the cable path is protected. Route cables through the protected opening and secure them as required by the installation. Ensure the carrier is seated evenly along the edge for continuous protection.

Recommendations

Check that the panel thickness is within the specified 1.0–2.0 mm range before fitting. Use suitable hand tools for trimming, wear protective gloves when handling sharp panel edges, and verify that the installed carrier does not interfere with cable bend radii or access to nearby components.
