Fluke 287/EUR True-RMS ψηφιακό πολύμετρο με TrendCapture 3947781

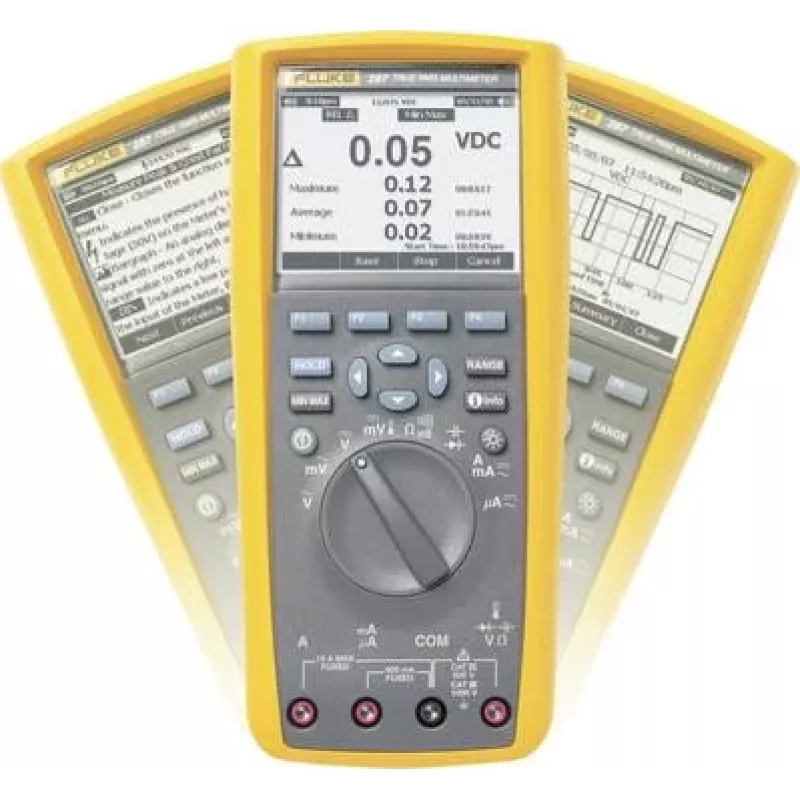

The Fluke 287/EUR stands apart from typical multimeters with its large 320 x 240 dot matrix LCD and TrendCapture logging, letting you view logged readings graphically right on the meter. True-RMS technology ensures accurate measurements on non-sinusoidal signals, while the 50,000-count display offers 4.5-digit resolution for precision work.

Highlights

• True-RMS AC voltage and current for accurate readings on complex waveforms
• TrendCapture graphical logging with storage for up to 20,000 readings
• Wide measurement ranges: 1000 V AC/DC, 10 A AC/DC, 500 MΩ resistance, 100 mF capacitance
• Temperature measurement from -200 °C to 1090 °C
• Basic DC voltage accuracy of 0.025%
• Safety rated CAT III 1000 V / CAT IV 600 V

In daily use

Powered by six AA batteries, the 287/EUR is designed for field service and troubleshooting. Min/Max/Average, Peak Capture, and a low-pass filter help capture intermittent signals. A diode test and continuity function round out the essentials. USB connectivity is available with the optional Fluke ir3000 FC connector.

Full specifications

• Display: 4.5 digits (50,000 counts), 320 x 240 dot matrix LCD with backlight
• DC voltage range: 1000 V
• AC voltage range: 1000 V
• DC current range: 10 A (20 A for 30 seconds)
• AC current range: 10 A (20 A for 30 seconds)
• Resistance range: 500 MΩ
• Capacitance range: 100 mF
• Frequency range: 1 MHz
• Temperature measurement range: -200 °C to 1090 °C
• Basic DC voltage accuracy: 0.025%
• Measuring category: CAT III 1000 V, CAT IV 600 V
• Battery type: AA
• Number of batteries supported: 6
• Dimensions (WxDxH): 102 x 60 x 222 mm
• Product type: Digital multimeter

Final note

The Fluke 287/EUR combines advanced logging and high accuracy in a rugged, portable design for demanding electrical and electronic troubleshooting.
