Fischer Παξιμάδι με κρίκο RI M8 20x

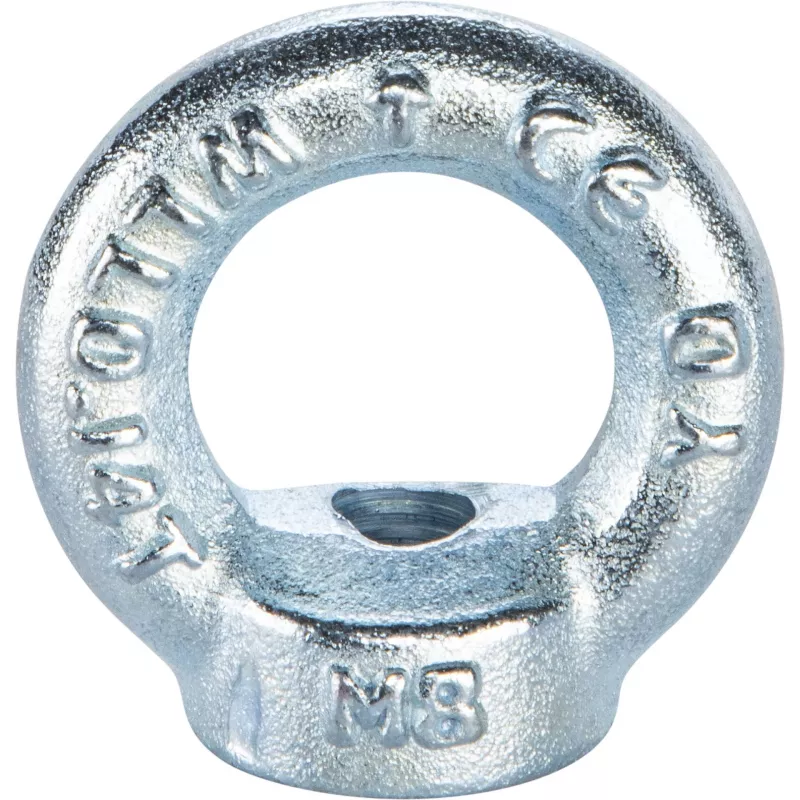

The Fischer Eye Nut RI M8 20x is a high-quality metric eye nut designed for lifting and pulling applications. Manufactured from electro-galvanized steel, it offers reliable corrosion protection and a rated axial load capacity of 1.4 kN (140 kg). With an M8 thread and a 20 mm inner eye diameter, this eye nut is suitable for various rigging and mounting tasks.

Advantages

Electro-galvanized surface treatment provides excellent corrosion resistance, ensuring long-lasting performance even in demanding environments. The eye nut design allows for easy attachment of hooks, ropes, or cables, making it versatile for lifting and securing loads.

Suitable for

• Lifting and pulling applications
• Rigging and mounting systems
• Industrial and construction use

Key specifications

• Thread Size: M8
• Inner Eye Diameter: 20 mm
• Outer Eye Diameter: 36 mm
• Overall Length: 54 mm
• Thread Length: 13 mm
• Eye Thickness: 8 mm
• Rated Axial Load Capacity: 1.4 kN (140 kg)
• Rated 45° Load Capacity: 0.3 kN (30 kg)
• Material: Steel
• Surface Treatment: Electro-galvanized
• Standard Compliance: Similar to DIN 582

Recommendations

Always ensure the eye nut is properly tightened and used within its rated load capacity. For safety, inspect the product before each use and replace if any signs of wear or damage are present.
