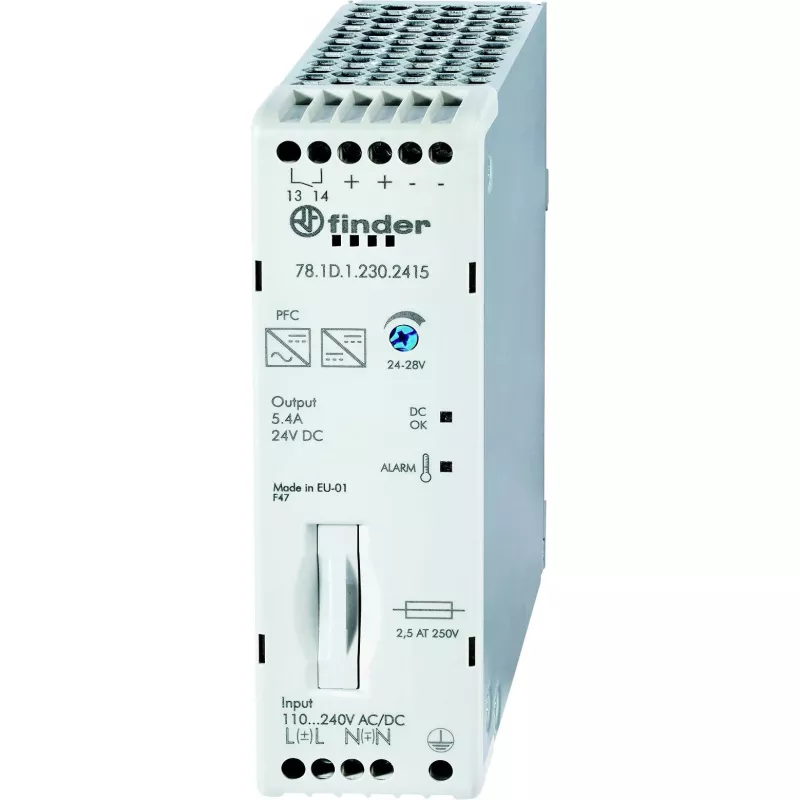

Finder 78.1D.1.230.2415 Τροφοδοτικό ράγας DIN 24 V/DC 5,4 A 130 W

DIN rail power supply delivering 24 V DC at 5.4 A with 130 W output. It operates from a 100–240 V AC input at 50/60 Hz and achieves 90% efficiency at 230 V AC full load. The unit mounts on a TS-35/7.5 or TS-35/15 DIN rail and connects via screw terminals.

Advantages

High efficiency reduces energy consumption and heat generation. Built-in protection against overload, short circuit, over voltage, and over temperature ensures reliable operation in demanding environments. Wide operating temperature range from -20 to +70 °C with derating above 50 °C.

Suitable for

• Industrial control panels
• Building automation systems
• Machinery and equipment requiring stable 24 V DC power

Key specifications

• Input voltage: 100–240 V AC
• Input frequency: 50/60 Hz
• Output voltage: 24 V DC
• Output current: 5.4 A
• Output power: 130 W
• Efficiency: 90% at 230 V AC full load
• Ripple & noise: <100 mVp-p
• Operating temperature: -20 to +70 °C (derating above 50 °C)
• Storage temperature: -40 to +85 °C
• Protection class: IP20
• Mounting: DIN rail TS-35/7.5 or TS-35/15
• Connections: screw terminals

Recommendations

Ideal for engineers and panel builders who need a compact, efficient, and protected 24 V DC supply for DIN rail installation.
