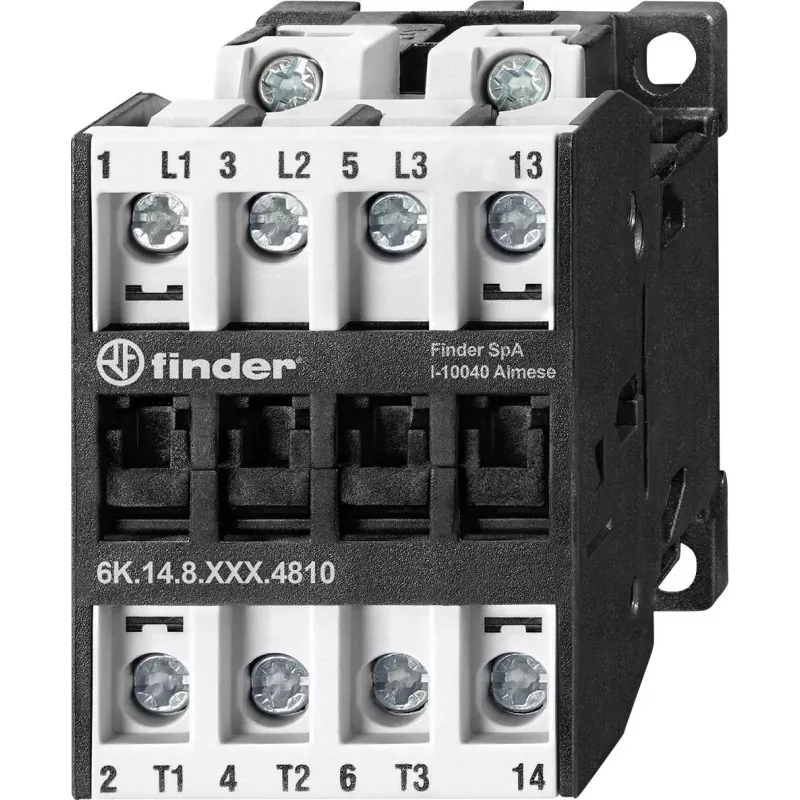

Finder 6K.14.8.230.4810 Αρθρωτός επαφέας 4NO 25A 230V AC Ράγα DIN

With a 25 A maximum switching current and a 230 V AC coil, the Finder 6K.14.8.230.4810 modular contactor delivers dependable control for lighting and heating loads in residential and commercial installations.

Overview

The Finder 6K Series modular contactor features a 4-pole normally open (4NO) contact configuration, making it ideal for switching single-phase or three-phase circuits up to 25 A. Its compact 1-module (17.5 mm) width allows high-density DIN rail mounting, while the 230 V AC coil simplifies integration into standard control systems.

What stands out

• High switching capacity: 25 A at 250 V AC (AC1) for demanding loads.
• Compact design: only 17.5 mm wide, saving space in distribution boards.
• Long mechanical life: 10 million operations for extended service.
• Wide operating temperature range: -40 °C to +70 °C for harsh environments.
• Silver tin oxide (AgSnO2) contacts for reliable performance and arc resistance.

Technical details

• Coil voltage: 230 V AC
• Contact configuration: 4 NO
• Rated load AC1: 25 A @ 250 V AC
• Rated load AC3: 9 A @ 400 V AC
• Max switching voltage: 400 V AC
• Coil power consumption: 2.5 VA
• Electrical durability (AC1): 100,000 cycles
• Mechanical durability: 10,000,000 cycles
• Mounting: DIN rail
• Module width: 1 module (17.5 mm)

Our verdict

A robust and space-efficient modular contactor for reliable switching of high-current loads, backed by Finder's proven engineering.
